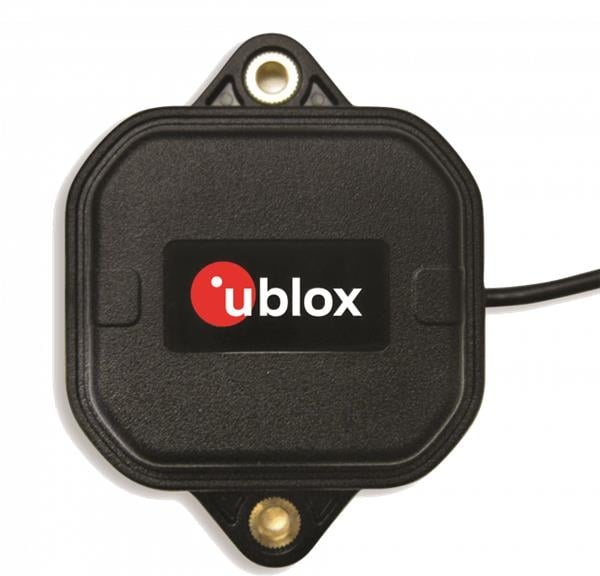

u-blox ANN-MB-00 ເຄື່ອງຮັບສະຫນາມສົດຫຼາຍສະຖານີ Active Antenna Multi-band active GNSS antenna ມີສາຍຄວາມຍາວ 5 m ແລະຕົວເຊື່ອມ SMA

Gain: 2 dBi, 3 dBi

VSWR: 2

Style: Puck

Width: 60 mm

Height: 22.5 mm

Length: 82 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 5 M RG174

Application: Satellite Applications

Cable Length: 5 m

Polarization: RHCP

Mounting Style: Chassis Mount

Number of Bands: 2 Band

Center Frequency: 1.17645 GHz, 1.57542 GHz, 1.561 GHz, 1.602 GHz

Mechanical Style: Module

Ground Plane Size: 15 cm

Maximum Frequency: 1.249 GHz, 1.606 GHz

Minimum Frequency: 1.197 GHz, 1.559 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
