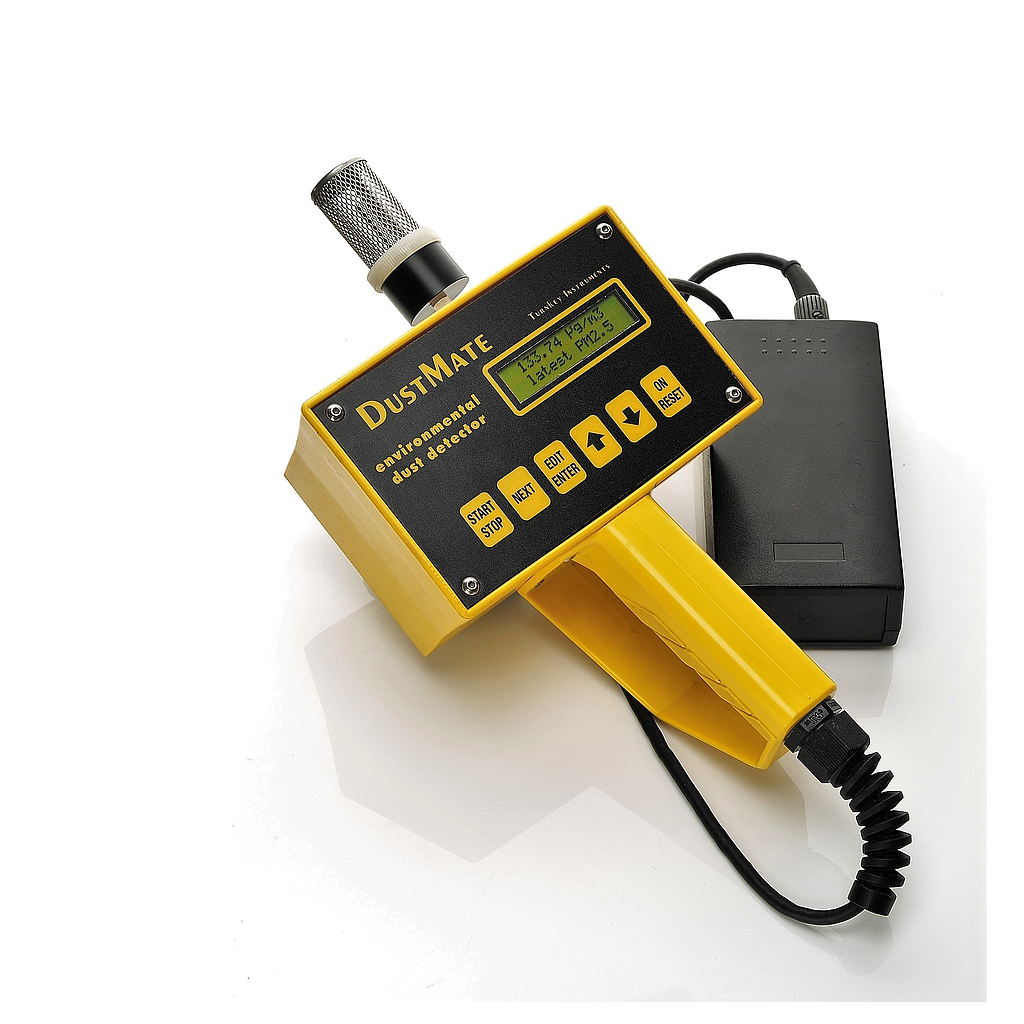

Turnkey Dustmate Air Sampling Dust Detector

Standard inlet: TSP (1mm stainless mesh)

Heated inlet: Heating to 60°C ( option)

Environmental mode: TSP, PM10, PM2.5, PM1.0

Workplace mode: Inhalable, thoracic,respirable

Measurement range: 0 to 6000 micrograms per cubic metre

Detection limit: 0.01 micrograms per cubic metre

Indicator range: 0 to 60mg/m3 without particle sizing

Particle size range: 0.5 to 20 micron diameter

Particle counting mode: Three size channels in particle per cc

Flow rate: 600cc per minute

Reference filter: 25mm diameter GFA circle

Operating temperature: -5°C to +50°C

Security: Password protection

Display: Two line alphanumeric with backlight

Data storage: Internal with separate battery backup :32k byte

Averaging period: 1 second to 4 hours

Battery Sealed lead acid, rechargeable : Belt pack 6v 1.2 AH

Sampling current drain Including heated inlet

and backlight :200mA (without heated inlet)

RS232 I/O: 9600 baud via PC-link

Case protection: Carry case

Dimensions:160 x 100 x 100

Weight: 1.2kg

Power options:Mains and battery only
