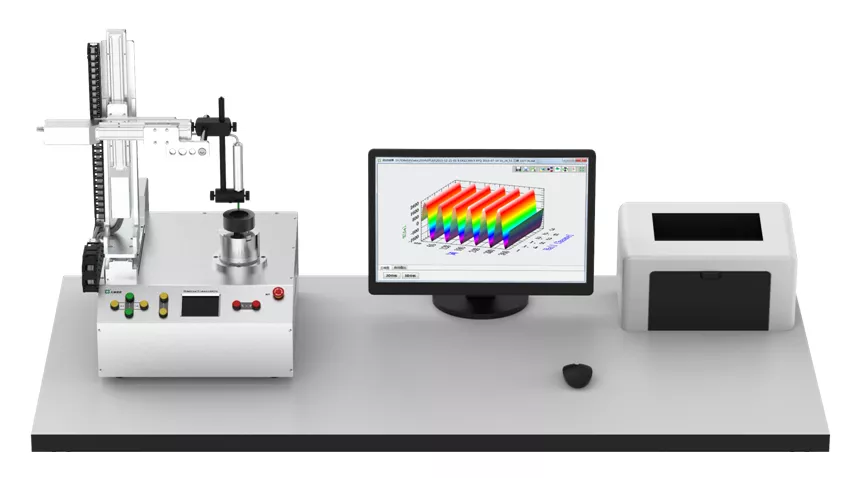

Tunkia TY2100 ລະບົບການທົດສອບອັດຕະໂນມັດຂອງສະໜາມແມ່ເຫຼັກໜ້າດິນ (0～2000 mT)

Tesla Meter: Measuring range: 0～2000mT, minimum resolution: 10μT, uncertainty of measurement: 0.5%.

Hall Probe: The sensing chip of the probe is encapsulated with wear-resistant material, providing elasticity and reducing the risk of breakage.

Rotating Test Platform: The test platform is equipped with a rotary chuck, which is driven by a precision stepping motor to drive the tested sample to rotate in the W -axis direction.

Chuck and Bearing: the concentricity of the standard chuck is 0.05 mm, which makes the operation more stable.

4 Axis Motion Control: The motion control of XYZW axis has two modes: software automatic control and key manual control.

Non-magnetic Three-jaw Chuck (Optional): A non-magnetic three-jaw chuck is available as an option for special application scenarios.

Plane Sample Fixture (optional): used to measure plane specimens and cube specimens.

Radial Probe (optional): used for surface magnetic measurement of plane sample, cube sample, etc.
