Summary

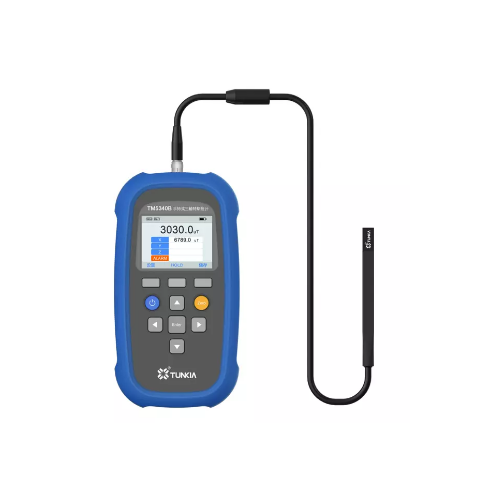

The TM5340B is a portable, multi-function meter that measures magnetic field, equipped with high sensitivity, low drift triaxial Hall sensor. It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.
Specification
- XYZ Range: 30 mT; R Range: 52 mT; Resolution: 1 μT
- XYZ Range: 300 mT; R Range: 520 mT; Resolution: 10 μT
- XYZ Range: 3000 mT; R Range: 5200 mT; Resolution: 0.1 mT (1)
Measuring Range: 2 mT～3000 mT
Accuracy: DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)
Frequency Range: DC,40 Hz～500 Hz
Temperature Coefficient: ± 0.06% / K
Zero Drift: ± 0.1 mT / h
Display Digits: 5
Remark: (1) Calibration only covers 2.5T
General Specifications:
Power Supply: 4000 mAh lithium battery, USB charging
Temperature Performance:
Operating temperature:0°C～45°C
Storage temperature:-20°C～70°C
Humidity Performance:
Working humidity:20%～80% R•H, non-condensing
Storage humidity:< 85% R•H, non-condensing
Weight: About 500 g
Interface: Hall probe input interface, USB interface
Dimensions: 90 mm(W) × 40 mm(D) × 165 mm(H)
