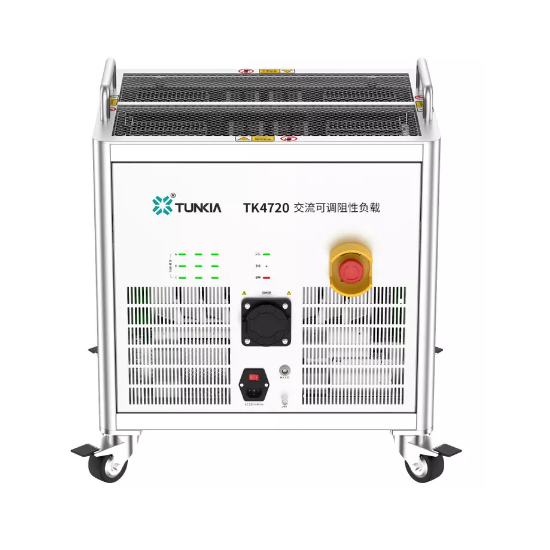

Tunkia TK4720 AC Adjustable Resistance Load (9 kW, single phase)
Rated Power (@A C 220V): Single-phase 9 kW
Working Range: Voltage 0~264 V and current 0~39.5 A
Connection Mode: Single phase
Mini. Current Step: 0.5 A
Mini. Power Step: 0k W.11
Range Of Resistance Regulation: 6.33 Ω-500 Ω
Heat Radiation: Air blast cooling
Protection: Overvoltage protection, short-circuit protection, abnormal wind speed protection;
Equipped with an alarm indicator light and an emergency stop switch
-General Technical Specifications:
Power Supply Mode: Charging head taking power; AC (220 ± 22) V, (50 ± 2) Hz
Temperature Performance:
Operating temperature: -25°C~55°C;
Storage temperature: -30°C~70°C
Humidity Performance:
Working Humidity: <80% @ 30°C, <70% @ 40°C, and <40% @ 50°C
Storage humidity: <80% R•H, no Condensation
Altitude: < 3000 m
Communication Interface: RS 232
Weight (Kg): About 20
Unit size (mm , W *D*H ): 400mm* 405mm* 345mm (No-including rollers and handles)
