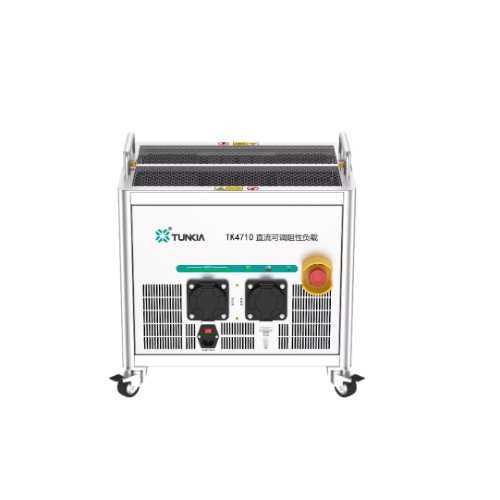

Tunkia TK4710 DC ປັບຄວາມຕ້ານທານ Load (60 kW, 0-750 V, 0~120 A)
- Technical Specifications:
Rated Power: 60 kW @750V / 500V
Power Cascaded: Support multiple cascades, e.g. two 60 kW in parallel with a total powerof 120 kW
Working Range: Voltage 0-750 V, Current 0~120 A
Mini. Current Step: Current is continuously adjustable
Range Of Resistance Regulation: 4.17 Ω ～166.7 Ω
Heat Radiation: Air blast cooling
Protection: Over-voltage protection, short-circuit protection, abnormal wind speed protection; Equipped with an alarm indicator light and an emergency stop switch;
- General Technical Specifications:
Power Supply Mode: Charging gun head to take electricity, AC (220 ± 22) V, (50 ± 2) Hz
Temperature Performance: Operating temperature: -25°C~55°C; storage temperature: -30°C~70°C
Humidity Performance: Operating Humidity: <80% @ 30°C, <70% @40°C, <40%@50°CStorage humidity: <80% R · H, no condensation
Altitude: < 3000 m
Communication Interface: RS232、CAN-BUS
Weight (Kg): About 66 kg
Unit size (mm , W *D*H ): 610 mm *550 mm* 435 mm ((No-including rollers and handles)
