- Summary

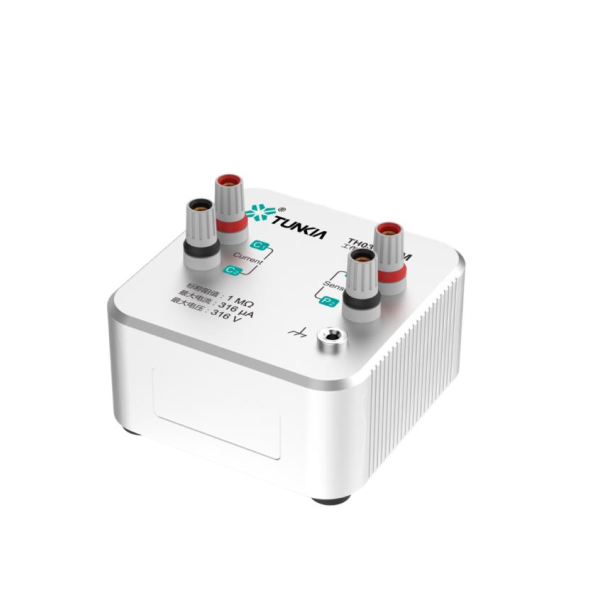

TH0310 is a series of precision standard resistors, suitable for measuring a wide range of precision current, it can also be applied for calibrating multifunction calibrators, high precision digital multi-meter, etc.
- Applications
Calibrate high precision resistance meter.
Calibrate standard resistance/precision resistance.
Establish high precision current measurement system.
- General Specification
Nominal Resistance @ 23°C: 1 MΩ
Initial Deviation (±ppm): 5
Accuracy (±ppm): 2.5
Annual Stability (±ppm): 5
Temperature coefficient (±ppm/°C): 1
Wiring: 4W
Nominal Power (W): 0.1
Power Factor ( ±ppm/W ): 10
Maximum Current (A): 300 μ
Maximum Voltage (V): 316
- General Specifications:
Temperature performance: Operating temperature: 18°C ~ 28°C; Storage temperature: -10°C~ 55°C;
Humidity performance: Working humidity :(40%-60%) R•H, no condensation; Storage humidity: 95% R•H, no condensation;
Weight: About 0.5 kg
Dimensions: 100 mm(W)×100 mm(D) ×50 mm(H) (excluding terminals and footpads)
