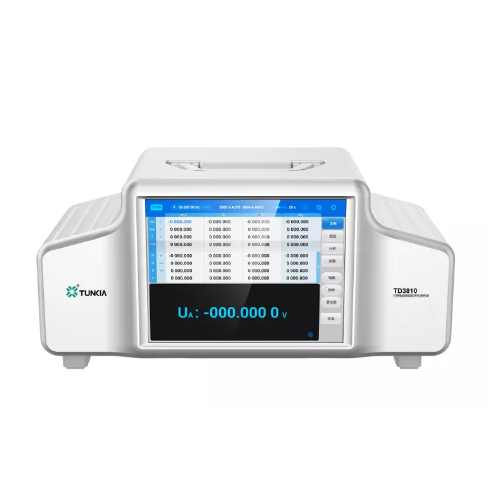

Tunkia TD3810 ລະບົບກວດກາພາກສະຫນາມອຸປະກອນພະລັງງານສາມເຟດ (Class 0.02, 45~65 Hz)

Power / power accuracy 0.01,0.02 optional.

Voltage measurement range: 6 V ~528 V (customized for wider range).

Current measurement range: 0.2 mA ~ 120 A.

Basal wave frequency: 45 Hz ~65 Hz (optional 400Hz).

The current is input by a pair of terminal posts without changing change.

Phase measurement uncertainty up to 0.003° (class 0.01)

Voltage and current support the fully automatic range shift.

Both voltage and current support 2 to 127 harmonic measurements.

It has the function of comprehensive statistical analysis of the measured electricity quantity.

Support the graphical display of phor map, spectrum map and trend map.

With the standard power pulse input / output function.

In the limit state, the instrument is not damaged and the value is accurate.

Support for temperature and humidity, magnetic field, daily timing error and other measurement functions

Rich communication interfaces: USB, RS232, LAN.

With a large size LCD touch touch screen.
