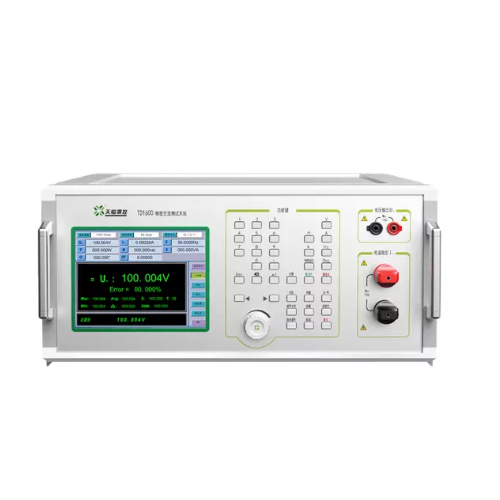

Tunkia TD1600 Precision AC Calibrator (1100 V, 110 A)

AC Electrical Parameter Output: Voltage is up to 1100 V, current is up to 110 A.

Frequency and Phase Adjustment: Frequency: 45 Hz ~ 70 Hz.

AC Power Output: Measure the active power, reactive power, apparent power and power factor.

Value Output Mode: Standard source and output source modes, easy to calibrate both digital meters and analogue meters.

Value Adjustment Method: Fixed-point, rotary encoder, step and potentiometer (option).

Output Switch: The output can be turned on/off arbitrarily by one-touch operation.

Automatical Error Calculation: Set the measured values of the checked meter, and adjust the value output to automatically calculate the errors of the checked meter.

Excellent Human-computer Interaction: Large LCD touch screen display, touch and button operation modes, easy for users to measure manually.

Harmonic (Option): Load 2nd to 31st harmonics with variable amplitude and phase for impact test.

Proprietary Software (Option): Support the calibration of the checked meters by semi-automatic or full-automatic, data management and report export.
