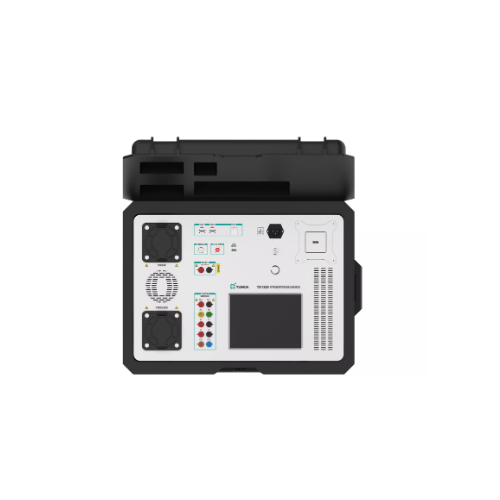

Tunkia TD1320 ເຄື່ອງທົດສອບແບບພົກພາສໍາລັບສະຖານີສາກໄຟ EV DC (Class 0.05)
- DCV Measurement:
Range: 300~1000V
Resolution: 0.1 mV~1 mV
Accuracy ± (ppm of reading + ppm of range) [1]: 200 + 25
Temp. Coefficient, ± ppm*RD /°C @-30°C~55°C: <20
Measurement range: 30V~1150 V
- DCI Measurement:
Range: 5A ~ 250A
Resolution: 1 μA ~ 0.1 mA
Accuracy ± (ppm of reading + ppm of range): 100 + 150/ 200 + 50
Temp. Coefficient, ± ppm*RD /°C @-30°C~55°C: 10~100
Measurement range: 0.5 A ~ 300 A
- P/E Energy Measurement:
Accuracy: ± 0.05%*RD
- Temperature/Clock:
Temperature Measurement:
Range: -30℃~60℃
Accuracy: 0.3℃
Clock function
Timing mode: GPS clock timing
Accuracy: 1s/d
- General Specifications:
Power Supply Mode: EV charger, built-in lithium battery, 220V commercial power
Power Supply: AC ( 220 ± 22 ) V, ( 50± 2 ) Hz
Max. Power: 100 VA
Communication Interface:
Communicate with the computer: USB, LAN, WIFI; Communicate with the charger and load: CAN-BUS
Temperature Performance: Operating temperature: -25°C~55°CStorage temperature: -30°C~70°C
Humidity Performance: Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C, Storage humidity: <80% R•H, non-condensing
Altitude: < 3000 m
Weight: About 21 kg
Dimensions: 540 mm(W) × 410 mm(D) × 270 mm(H)
