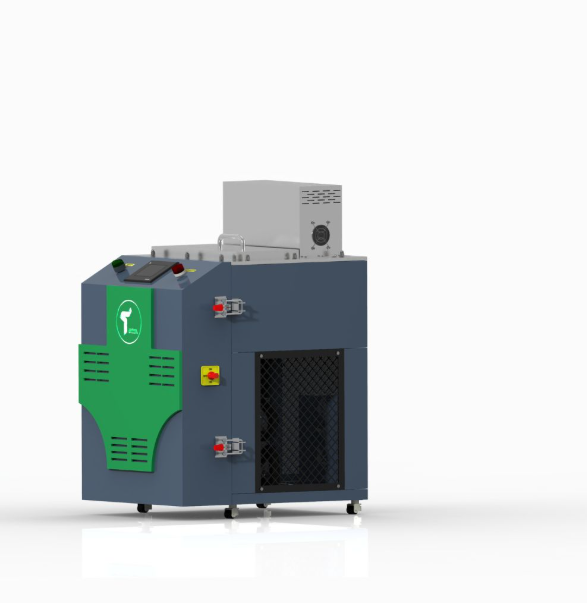

Temperature range – 30 to 200 deg C, Control HMI touch screen rest specifications as per attached data sheet, Option of External circulation, High resolution of 0.01 deg C , High thermal stability & uniformity
Internal Volumes(L): 4
Dimension
Workspace dimension (mm): 140x100x100 (WxDxH)
Outer Dimension (mm): 350x600x750 (WxDxH)
Temperature
Temperature range: -30°C to 200°C @25°C
Temperature fluctuation: ±0.08°C
Temperature uniformity: ±0.1°C
Cooling Medium for -30°C: 4 liter Isopropyl Alcohol / Ethanol
Heating Medium for +100°C: 4 liter Water/ Silicon Oil (5 to 10Cst)
Heating Medium for +200°C: 4 liter Silicon Oil (5 to 10Cst)
Cooling time: 25°C to -30°C: 60 minutes (Isopropyl Alcohol)
Internal Material: Internal test chamber is manufactured with Stainless steel
External Material: Exterior material shall be made of MS with powder coated panels/door with impressive precision & aesthetics
Thermal Insulation: Internal test chamber and outer body is isolated using mineral wool ensuring no air pockets and zero conduction and heat losses
Circulation Pump: light weight high flow Circulation pump for uniform circulation
Refrigeration Compressor: Huayi, Emerson Tecumseh and Danfoss.
Refrigerant: R134a or R-404a
Cooling mode: Air-Cooled
Evaporator: Evaporator heat exchanger coils
Heater: Inconel material sheathed/ bare nichrome air heaters to achieve the set temperature.
Controller: 3” Omron(HMI)
Power Supply Requirment: 230VAC +/- 5%, 1 Phase 50 Hz, 2 wire + E.
Connected Load (Max): 2KW
Chamber Drain: 1/4" BSP Female Threaded provision (Gravity Drain)
Condenser: Standard: Air-cooled condenser
Max Noise Level (dbA) Measured @1 metre distance: 10
Ambient Condition: 15°C to 25°C and 10% RH to 90% RH for air cooled system
Note-Circulation Tube Available for Cooling of External Pump like Experimental Test(Viscometer etc.)
