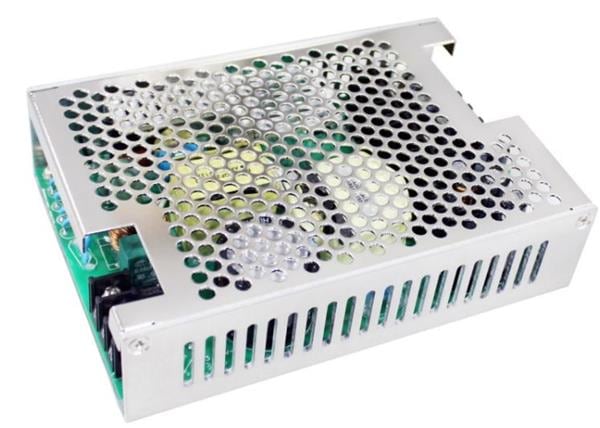

TT Electronics / Power Partners TAA240-27C ອຸປະກອນຈັດສົ່ງພະລັງງານປ່ຽນແປງ 240W 12/24V AC/DC ENCL

Width: 106 mm

Height: 39 mm

Length: 150 mm

Approvals: EN 62368-1, IEC 62368-1, UL/cUL 62368-1

Dimensions: 150 mm x 106 mm x 39 mm

Efficiency: 90 %

Output Power: 240 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 2 Output

Power - Convection: 4 kV

Power - Forced Air: 27 kV

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Current-Channel 2: 10 A

Output Voltage-Channel 1: 12 VDC

Output Voltage-Channel 2: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
