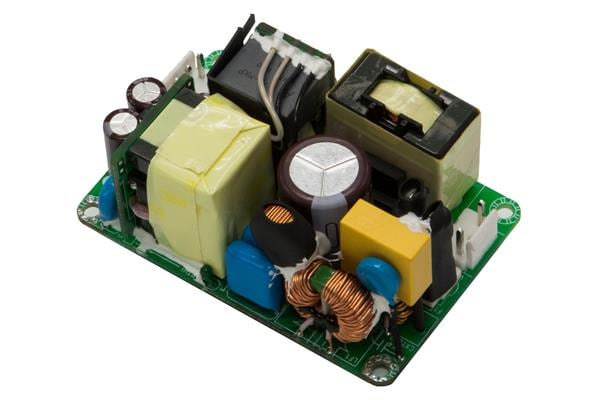

TT Electronics / Power Partners PPWAM150-18A ເຊັດຊິ້ນສະພລາຍ 150W/48V MED & ITE AC/DC PCB 2x3

Width: 50.8 mm (2 in)

Height: 29.972 mm (1.18 in)

Length: 76.2 mm (3 in)

Industry: Medical, Industrial

Dimensions: 3 in x 2 in x 1.18 in

Efficiency: 92 %

Output Power: 150 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Power - Convection: 100 W

Power - Forced Air: 150 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.13 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
