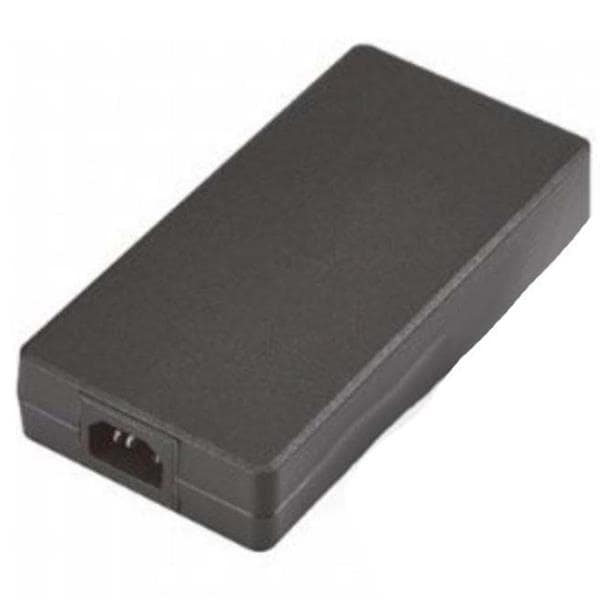

TT Electronics / Power Partners PEAD250B-13-1 ອາເດັດເຕັບ AC ເຕັບຕິດຕາມໂຕ

Width: 84 mm

Height: 30 mm

Length: 170 mm

Region: Universal

Industry: Industrial

Standard: CB, CCC, CE, cUL, EN, PSE, RCM, UKCA, UL

Approvals: CB, CCC, CE, cUL, EN, IEC62638 UL, PSE, RCM, UKCA

Efficiency: Level Vl, CoC Tier ll

Output Power: 210 W

AC Inlet Type: C14

Input Voltage: 90 VAC to 264 VAC

Connector Type: Rectangular Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: 6-Pin Mini-Fit Female

DC Output Cord Length: 1200 mm

Output Current-Channel 1: 11.66 A

Output Voltage-Channel 1: 18 VDC

AC Plug included/required: Required

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
