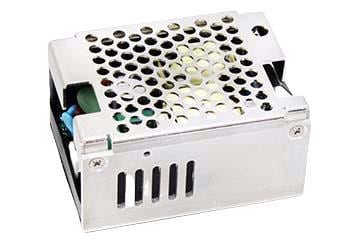

TT Electronics / Power Partners PAA130-12C ອຸປະກອນຈົດສະແດງ AC/DC 130W/12V ປິດກັບ

Width: 59.7 mm

Height: 43.2 mm

Length: 80 mm

Industry: Industrial

Approvals: EN/IEC/UL 62368-1

Dimensions: 80 mm x 59.7 mm x 43.2 mm

Efficiency: Level VI

Output Power: 130 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Screw

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC, 5.656 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10.833 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
