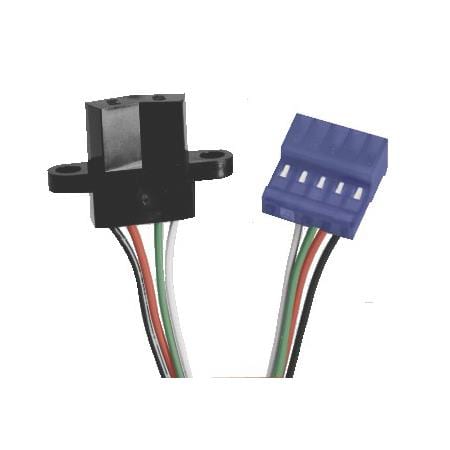

TT Electronics / Optek Technology OPB771TZ ອຸປະກອນສະລິດແບບແສງ, ສະລິດກັບ, ອຸປະກອນສະແກນສະລິດກັບອອກ Photo IC Reflective Sensor Photologic

Width: 6.35 mm

Height: 15.88 mm

Length: 24.64 mm

Wavelength: 890 nm

Output Type: Open Collector, Buffer

Unit Weight: 6.419 g

Mounting Style: Wire Leads

Output Voltage: 35 V

Sensing Method: Reflective

Sensing Distance: 5.6 mm

Number of Channels: 1 Channel

If - Forward Current: 40 mA

Ir - Reverse Current: 100 uA

Vf - Forward Voltage: 1.8 V

Vr - Reverse Voltage: 3 V

Pd - Power Dissipation: 300 mW

Low Level Output Current: 12.8 mA

Low Level Output Voltage: 400 mV

Operating Supply Voltage: 4.75 V to 5.25 V

High Level Output Current: 100 uA

High Level Output Voltage: 2.4 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
