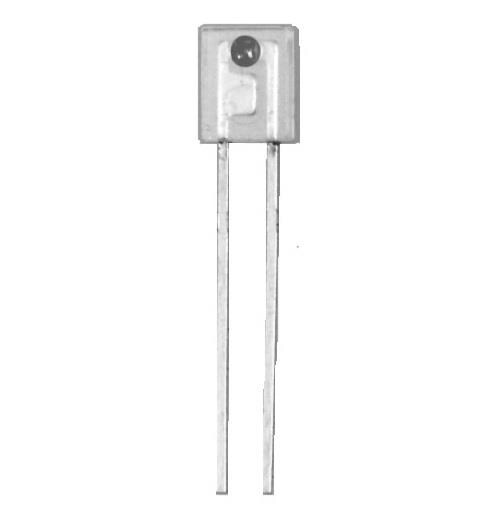

TT Electronics / Optek Technology OP509A NPN ຊິລິກອນ ໂຟຕໂຣນສິສເຕີ ໂຟຕໂຣນສິສເຕີ

Width: 1.63 mm

Height: 3.81 mm

Length: 4.19 mm

Wavelength: 890 nm/ 950 nm

Dark Current: 100 nA

Mounting Style: Through Hole

Peak Wavelength: 890 nm

Pd - Power Dissipation: 100 mW

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 20 mA

Collector- Emitter Voltage VCEO Max: 30 V

Collector-Emitter Breakdown Voltage: 30 V

Collector-Emitter Saturation Voltage: 400 mV
