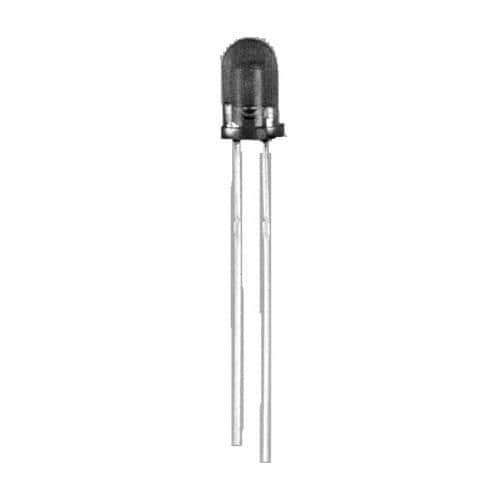

TT Electronics / Optek Technology OP506B NPN ຊິລິກອນ ໂຟໂຕທຣານຊິສເຕີ PHOTOSENSOR

Height: 5.08 mm

Wavelength: 935 nm

Unit Weight: 174 mg

Dark Current: 100 nA

Mounting Style: Through Hole

Peak Wavelength: 935 nm

Lens Color/Style: Blue

Pd - Power Dissipation: 100 mW

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 5.95 mA

Collector- Emitter Voltage VCEO Max: 30 V

Collector-Emitter Breakdown Voltage: 30 V

Collector-Emitter Saturation Voltage: 400 mV
