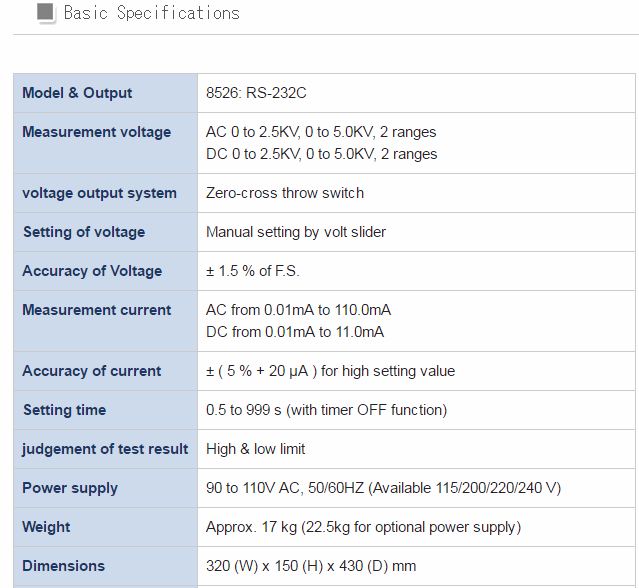

Model & Output 8526: RS-232C
Measurement voltage AC 0 to 2.5KV, 0 to 5.0KV, 2 ranges
DC 0 to 2.5KV, 0 to 5.0KV, 2 ranges
voltage output system Zero-cross throw switch
Setting of voltage Manual setting by volt slider
Accuracy of Voltage ± 1.5 % of F.S.
Measurement current AC from 0.01mA to 110.0mA
DC from 0.01mA to 11.0mA
Accuracy of current ± ( 5 % + 20 μA ) for high setting value
Setting time 0.5 to 999 s (with timer OFF function)
judgement of test result High & low limit
Power supply 90 to 110V AC, 50/60HZ (Available 115/200/220/240 V)
Weight Approx. 17 kg (22.5kg for optional power supply)
Dimensions 320 (W) x 150 (H) x 430 (D) mm
Accessories 2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1),
Remote I/O plug(1), Fuse(1)
