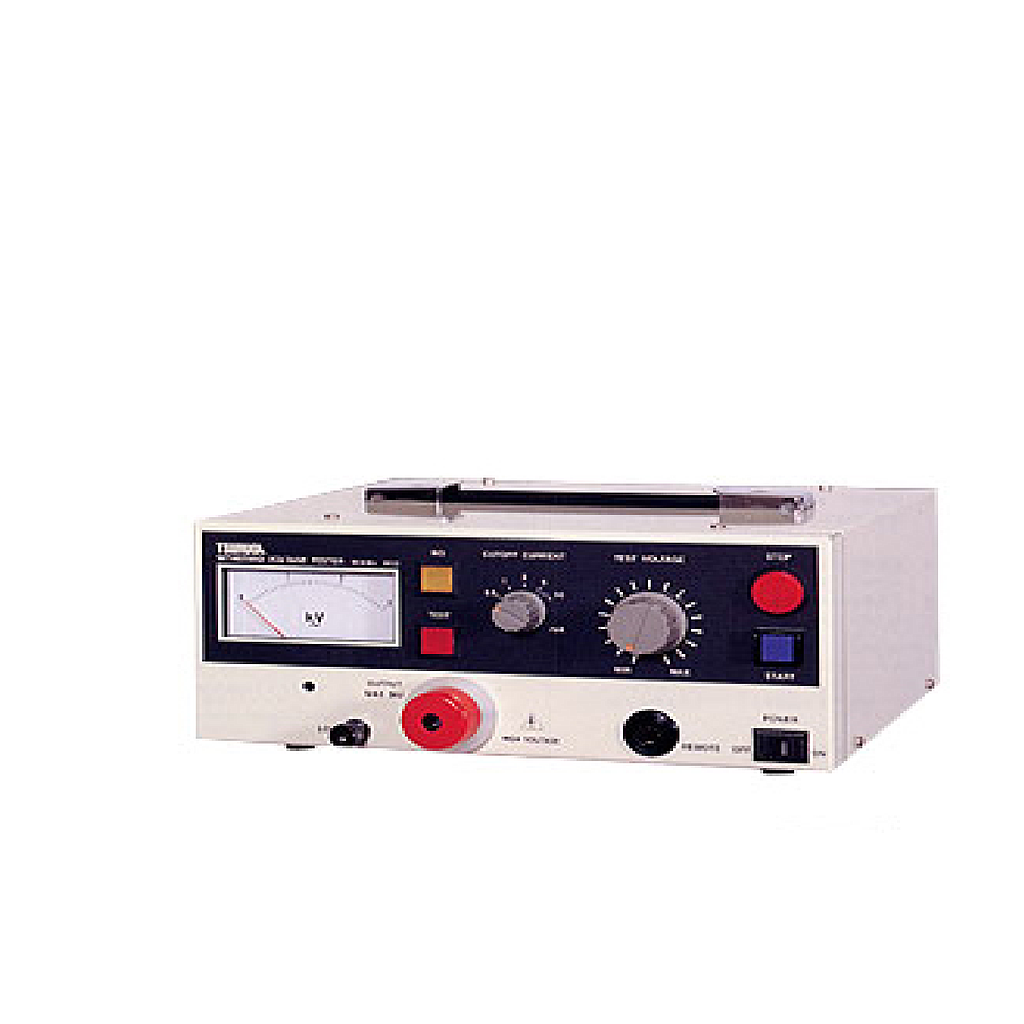

TSURUGA 8505 ທົນທານຕໍ່ແຮງດັນແລະ insulation Tester (5kV, 9990MΩ)

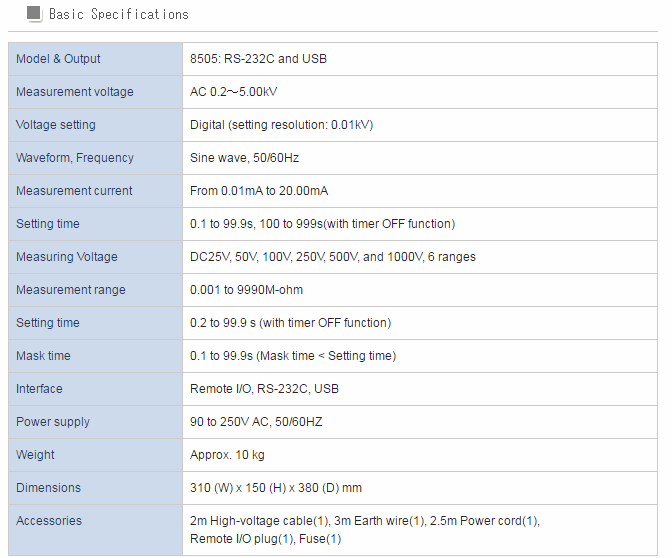

Model & Output 8505: RS-232C and USB
Measurement voltage AC 0.2～5.00kV
Voltage setting Digital (setting resolution: 0.01kV)
Waveform, Frequency Sine wave, 50/60Hz
Measurement current From 0.01mA to 20.00mA
Setting time 0.1 to 99.9s, 100 to 999s(with timer OFF function)
Measuring Voltage DC25V, 50V, 100V, 250V, 500V, and 1000V, 6 ranges
Measurement range 0.001 to 9990M-ohm
Setting time 0.2 to 99.9 s (with timer OFF function)
Mask time 0.1 to 99.9s (Mask time < Setting time)
Interface Remote I/O, RS-232C, USB
Power supply 90 to 250V AC, 50/60HZ
Weight Approx. 10 kg
Dimensions 310 (W) x 150 (H) x 380 (D) mm
Accessories 2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1),
Remote I/O plug(1), Fuse(1)
