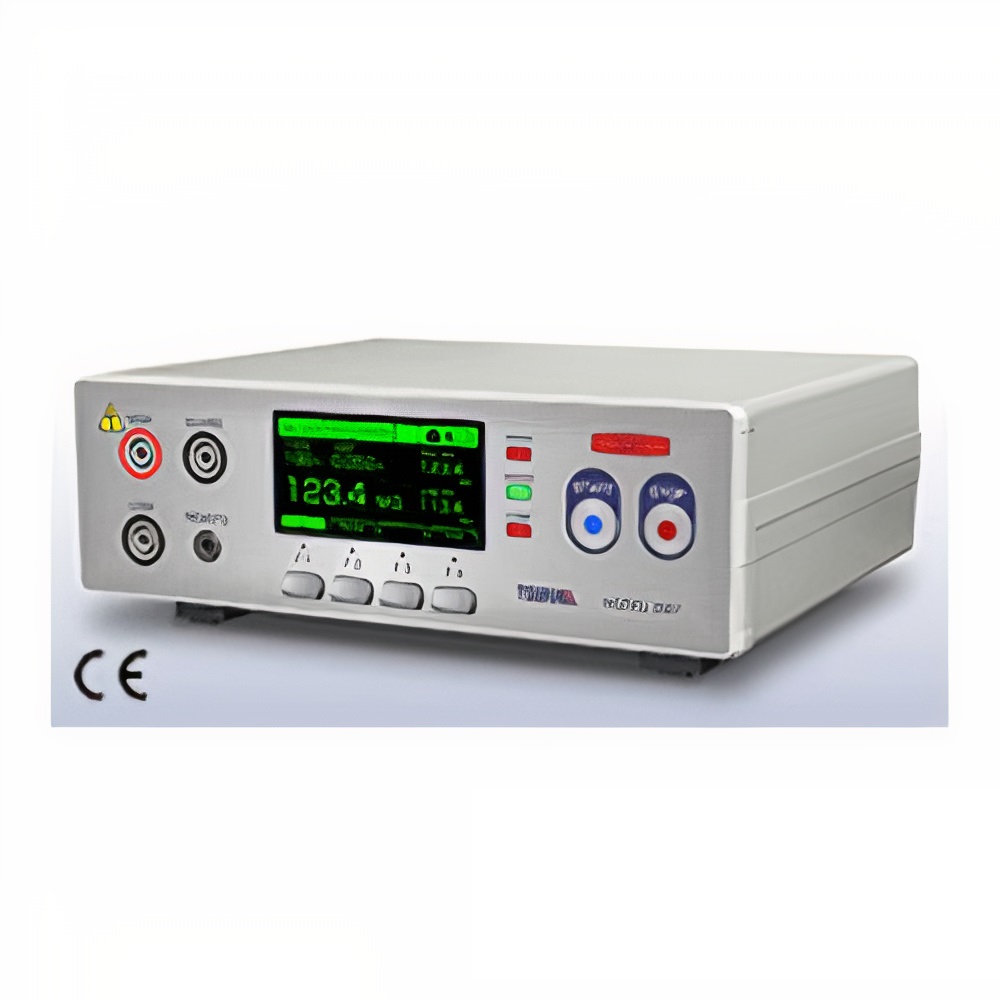

TSURUGA 3587-X ເຄື່ອງທົດສອບ Digital M-Ohm (DC25~1000V; 1V; RS-232C)
Measuring Range
- Test voltage: DC 25V~DC 99V; DC 100V~DC 499V; DC 500V~DC1000V
- Resistance range: 2~200 MΩ; 2~2000 MΩ; 20~200 MΩ
Basic Specifications
Output voltage: DC 25~1050V (Resolution: 1V),
Open voltage: ±(1% + 5V) of output voltage
Open circuit voltage: Less than 130% of rated voltage
Rated current: Less than 1mA
Display: Measured value: 0~9990
2.7 inch organic EL display (OLED), color: green
Sampling cycle
- FAST: 50 times/sec. when the frequency setting is 50 Hz
60 times/sec. when the frequency setting is 60 Hz
- SLOW: 10 times/sec.
Power supply: AC 100~240V (50/60 Hz)
Power consumption: 28VA MAX.
Operating environment: 0~50°C, less than 90% RH (no condensation)
Storage environment: -20~70°C, less than 70% RH (no condensation)
Size: 205(W)×64(H)×169(D)mm (not included protuberance)
Included accessories:
- Power cord (1)
- Fuse (1)
- Operating manual (1)
Optional accessories:
- LOW probe 5813-21
- HIGH probe 5813-22
- HIGH probe with switch +LOW probe 5813-23
- Power supply cord for AC 200V 5880-23-030
- Panel mounting bracket 5811-31
