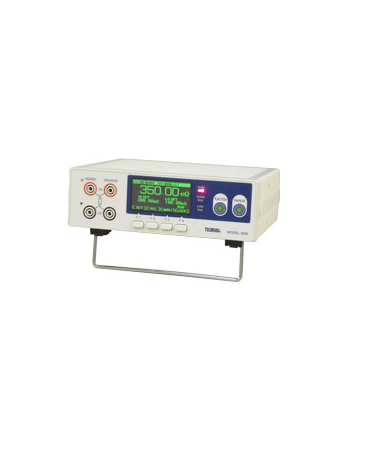

TSURUGA 3585-07-H ມິດໂອມ DC (30 mΩ~300 kΩ)

Resistance measurement

Measurement range: 30 mΩ/ 300 mΩ/ 3 Ω/ 30 Ω/ 300 Ω/ 3 kΩ/ 30 kΩ/ 300 kΩ

Resolution: 1 μΩ/ 10 μΩ/ 100 μΩ/ 1 mΩ/ 10 mΩ/ 100 mΩ/ 1 Ω/ 10 Ω

Measuring current: DC 300 mA/ DC 100 ｍA/ DC 10 mA/ DC 1 mA/ DC 10 μA

Max. applied voltage: 9 mV/ 30 mV/ 300 mV/ 3 V/ 300 mV/ 3 V

Accuracy: ± (0.2 % of rdg. + 10 dgt.)/ ± (0.08 % of rdg. + 3 dgt.)

Temperature coefficient: ± (0.02 % of rdg. + 1 dgt.)/℃/ ± (0.01 % of rdg. + 0.5 dgt.)/℃

Open terminal voltage: DC 6 V Max.

Temperature measurement>

Measurement range: -19.9 to 199.9℃

Resolution: 0.1℃

Accuracy: ± （0.2 ％ of rdg. + 0.2℃)

Temperature coefficient: ± （0.02％ of rdg. + 0.02 ℃)/℃

Sensor: Pt 100 Ω 3 lead wire type (Resistance of lead wire: Less than 5 Ω)

Measuring current: 1 mA

Specification

Measuring method: DC 4 terminal method

Max. allowable applied voltage: All range 100 V DC

Display:

OLED display

Max. display 35000

Zero suppress function

OVER display: OVER

Sampling cycle

SLOW: 5 times/s

MEDIUM: 20 times/s

FAST: 90 times/s

Response speed

SLOW: Approx. 210 ms

MEDIUM: Approx. 57 ms

FAST: Approx. 20 ms

Time till judgment outputs, measured during HOLD while the specimen (fixed range) is connected.

Analog output:

DC 3 V, output for display value 30000.

Load resistance: More than 2 kΩ

Conversion method: D/A conversion

Accuracy: ± 0.2 % of F.S.

Insulation resistance:

Power supply terminal/Outer case  More than DC 500 V, 100 MΩ

Measruing terminal/Control terminal and RS-232C   More than DC 500 V, 10 MΩ

Withstand voltage Measuring terminals, control terminals, RS-232C/Outer case   AC 1500 V, 1 min

Power supply/Outer case AC 1500 V, 1 min

Parameter retain: Retained in EEPROM during Power off

Power supply: AC 100 to 240 V (50/60 Hz)

Power consumption: 17 VA max.

Data Output: Analog voltage output + RS-232C

Operating ambient temperature: 0 to 40 ℃

Storage temperature: -20 to 70 ℃

Weight: Approx. 1 kg
