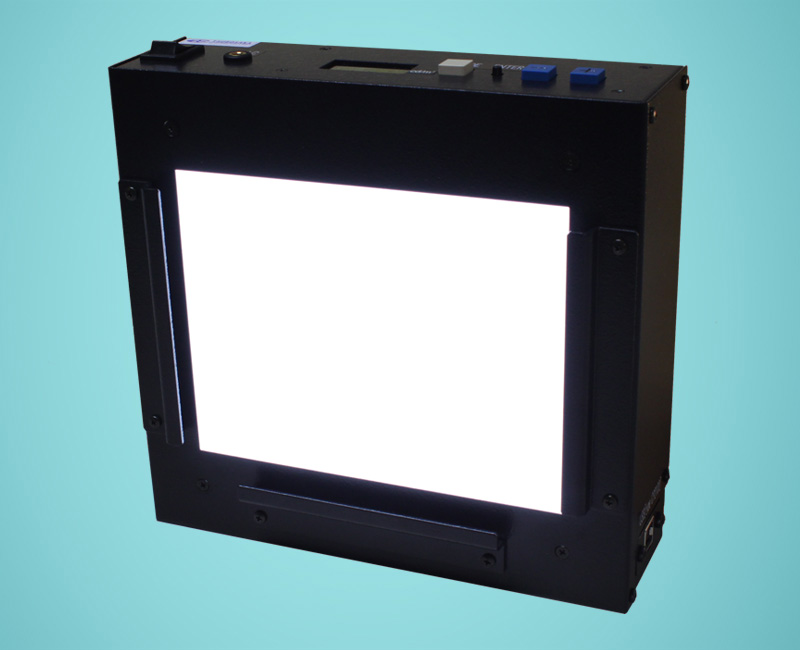

Tsubosaka VLB-1411FBWC-CRI ອຸປະກອນສະແດງສີ LED ຄວາມສູງສຸດ

Luminance [cd/㎡]: 10 registered brightness points, 300–1,700

Standard brightness levels: 300, 500, 600, 750, 900, 1000, 1200, 1250, 1400, 1500

Luminance surface (WxH) [mm]: 140×110

Brightness uniformity [±%]: 2.5

Correlated color temperature [K]: 3200±150, 5500±500, 6500±500 (choose two colors)

Light source: LED

Lighting method: DC

Function: Registered brightness variable; Brightness adjustment function; LED lighting OFF function; Brightness feedback function; Auto calibration (requires LC-5)

Display / Operation: Main unit operation; Dedicated PC software; External communication control (serial)

Communication I/F: USB 2.0 compliant

Power supply voltage: AC100–240V, 50/60Hz

Power consumption [VA]: Under 100

Operating environment: Temperature 20–30°C (±2°C recommended); Humidity ≤80%, no condensation

Dimensions (WxHxD) [mm]: 186×194×68

Weight [g]: 600

Accessories: Dedicated PC control software; Chart folder

Extension functions: Color temperature setting; Brightness range change (5.7× from 90–3,000); Brightness range expansion; Pulse lighting (internal/external); Increased number of brightness registration points (up to 20 points)
