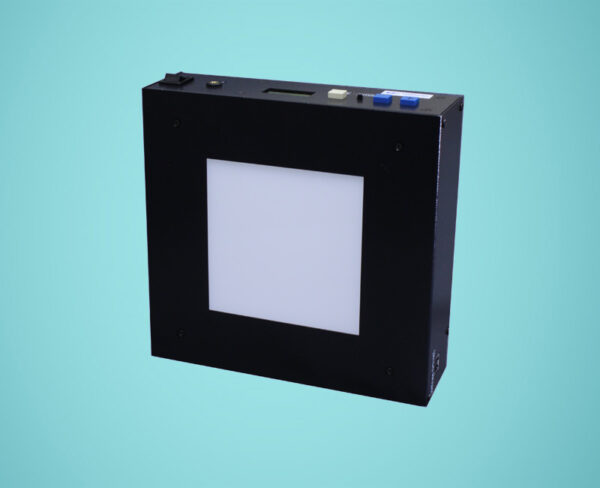

Tsubosaka VLB-10FBW-IR8594 ກ່ອງແສງພື້ນຜິວ IR

Intensity range:

850 nm: 40 – 200 [μW/cm²]

940 nm: 30 – 150 [μW/cm²]

Intensity unevenness [±%]: 2.5

Light source: LED

Lighting method: DC

Wavelength [nm]: 850, 940

Function:

Change input intensities

Fine tune IR intensity

Switch IR wavelengths

IR intensity feedback function

Display / Operation:

The main operation part

External communication control (serial)

Communication I/F:

Connector: USB 2.0 Type-B

UART by visual COM port with USB port

Power supply voltage: AC100–240V, 50/60Hz

Power consumption [VA]: 100

Operating environment: Temperature 15–30℃; Humidity less than 80% without dew condensation

Dimensions (WxHxD) [mm]: 186×195×67

Weight [kg]: 0.54

Extension functions:

Change the size of light surface and IR intensity

Change wavelengths (850 nm, 940 nm, 1050 nm, 1300 nm, 1550 nm)

Upgrade maximum IR intensity
