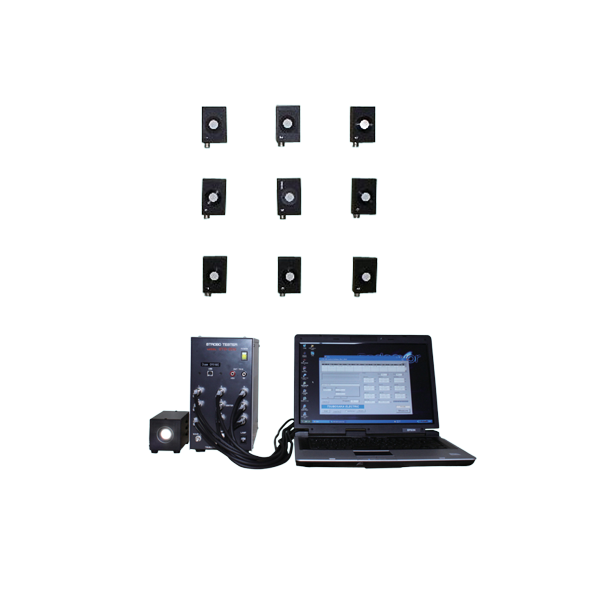

Tsubosaka STB-209XL2 ເຄື່ອງທົດສອບການກະຈາຍແສງສະຫວ່າງເກົ້າຈຸດ (Silicon photo diode)
Scan range: Silicon photo diode
Measurement item
(1) Main light volume(1 point) and peripheral light volume(8 points)
Light volume[lx･s], Light volume[GN], Light distribution[⊿EV,%], Maximum illuminance[klx], Illuminance[lx]
(2) Only main light volume (added to the above measurement items)
Light volume[AV/Fno], Maximum illuminance[lx], Flash time[ms], Attenuation rate[%]
Supported OS: Windows7,10
Measurement time [ｍs]: LX-MODE : 30 - 1400
Measurement time [s]: MP-MODE : 1 - 10
Judgment function: OK / NG judgment
Communication I / F: USB 2.0 compliant
Power-supply voltage: AC100 - 240V 50/60Hz
Power consumption [VA]: 50
Dimensions (WxHxD) [mm]
Main unit : 140 x 264 x 280
Light receiving parts : 75 x 50 x 45
Calibration light source : 110 x 120 x 230
Weight [kg]: 12
Accessories
Light receiving part (9pcs)
Light receiving connection cable (9pcs)
Calibration light source
