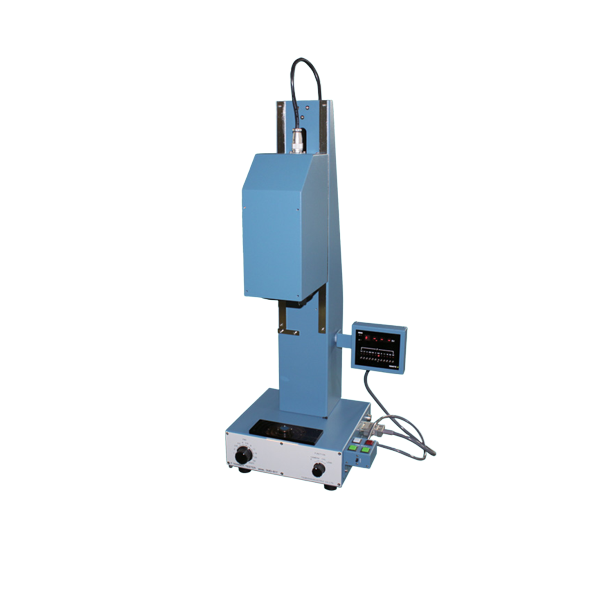

Tsubosaka SMD-81T2 F Number Meter (-2.02 - +2.02 EV)
Light source: Halogen lamp
Setting range:
F number selection: 12 types (F1.4-F32), AUTO
Switch SENS: 4 types (SENS1-SENS4)
Collimator optical system:
Parallel light lens 80mm in diameter
※SMD-100T2 model; 100mm in diameter
Object to be inspected:
Aperture of lens shutter of camera
Aperture of focal plane shutter camera
Aperture of changeable lens (special tools are required)
Diameter of aperture at the flash synchronization
Aperture of setting time by EXIT pulse
Measurement item: Difference (dEV) against the standard aperture caliber of camera and lens
Measurement range: -2.02 - +2.02 EV
Measurement method:
Irradiates parallel rays to the target to be measured
Calculate EV from the ratio of the light intensity of the reference aperture to the measured light intensity
Display / Operation: Operation of the main part
External (serial) communication control
Communication I / F: USB 2.0 compliant or RS-232C compliant
Power-supply voltage: AC100 - 240V 50/60Hz
Power consumption [VA]: 40
Dimensions (WxHxD) [mm]: 320 x 750 x 280
Weight [kg]: 12
