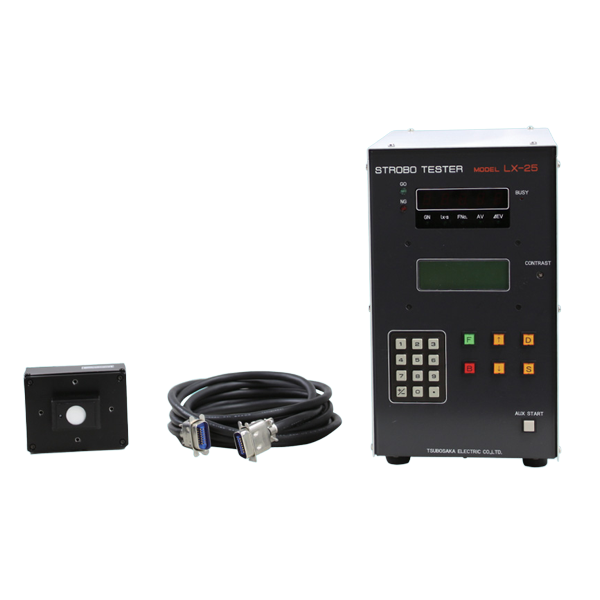

Tsubosaka LX-25 Integral Flash Meter (0.5 - 1,340 lx.s)

Setting range

Photosensitivity (3 levels)

OK/NA Decision criteria

Sensor: Three types are available according to the illuminance

Object to be inspected: Small and medium-sized light emitting products such as camera/mobile phone/smartphone

Measurement range: Luminescence light quantity : 0.5 - 1,340 [lx.s]

Communication I / F: RS-232C compliant

Power-supply voltage: AC100 - 240V 50/60Hz

Dimensions (WxHxD) [mm]

Main unit : 160 x 285 x 310

Light receiving part : 95 x 73 x 60

Weight [kg]: 6.4

Accessories

Light receiving part (1pcs)

Light receiving connection cable (1pcs)

Measurement item

Light exposure [lx･s] : Time integration value of flashing light luminescence

Guide No. [GN] : The proper value of the film sensitivity and the distance of the photography to a light exposure

Fno. [Fno.] : The proper value of Fno. to a light exposure

Aperture value [AV] : Iris diaphragm index

⊿EV [EV] : The deviation to the setting standard value
