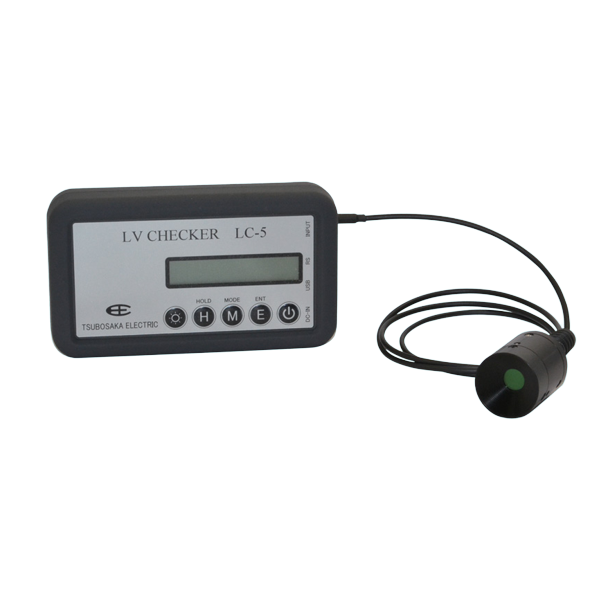

Tsubosaka LC-5 ເຄື່ອງວັດແທກຄວາມສະຫວ່າງ (-4,00 - 19,00 LV)

Sensor:

Silicon photo diode (φ10mm, sensitivity of wavelengths 400-700nm)

Built-in the luminosity factor correction (Less than 3%)

Object to be inspected: Diffusing light surface

Measurement item: Luminance (LV/cd/㎡/rlx)

Measurement range:

[LV] -4.00 - 19.00 (K:1.3, ISO 100)

[cd/㎡] 0.00875 - 73,370

[rlx] 0.02448 - 230,500

Display / Operation:

Operation of the main part

External (serial) communication control

Communication I / F:

USB 2.0 compliant

RS-232C compliant

Power-supply voltage:

2 AA battery

AC adapter

AC100 - 240V 50/60Hz

Dimensions (WxHxD) [mm]: 141 x 34 x 81

Weight [g]: 310

Accessories:

2 AA battery

AC adapter

Silicon cover

Carrying case
