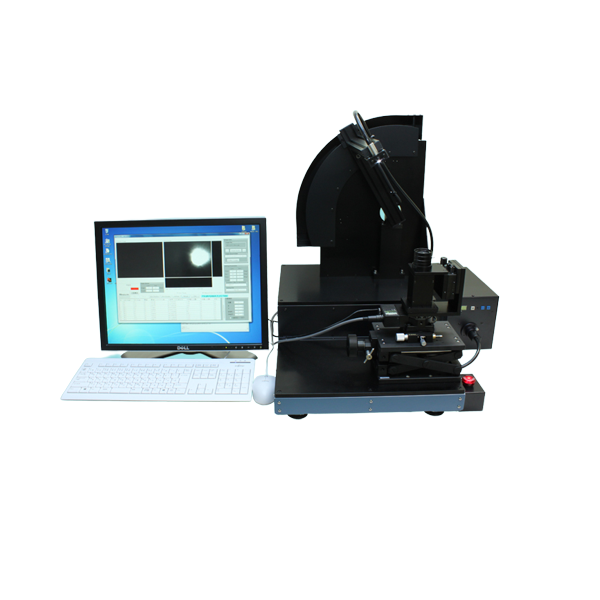

Tsubosaka GCS-2T ລະບົບການປະເມີນປະກົດການຜີ/Flare (200 lx)

Light source: LED

Illuminance [lx]: More than 200

Sensor: CMOS sensor color camera module

Pinhole: φ1.85mm *Can be detached

Object to be inspected: Various lenses, lens units

Display / Operation: Designated PC software operation

Supported OS: Windows 7/8/10

Power-supply voltage: AC100-240V 50/60Hz

Power consumption [VA]

Measuring unit: 120

Light source unit: 100

Dimensions (WxHxD) [mm]

Measuring unit: 510x720x410

Light source unit: 145x170x245

Weight [kg]

Measuring unit: 30

Light source unit: 6

Extension: NIR light source (910nm, 940nm, 1050nm etc.)

Datasheet

Reproduce Ghost/Flare phenomenon for lens evaluations

Irradiated from multiple angles for automatic continuously saving of images to PC file

Electric powered moving from the directly above to over the horizon

Switch irradiating angles with electric powered rotations of a lens

Extract and evaluate ghost phenomenon and flare phenomenon from RGB data of an image (Option)
