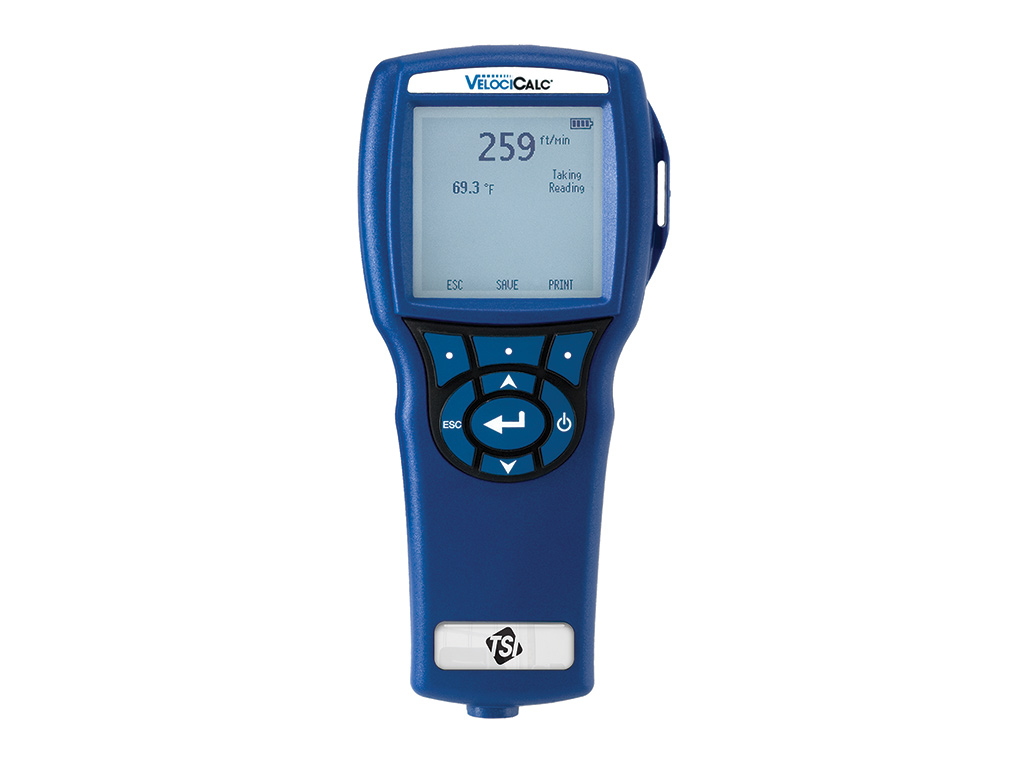

TSI 9565-P VelociCalc Multi-Function Ventilation Meter

Product Details

The VelociCalc® Multi-Function Ventilation Meter 9565features a menu-driven user interface for easy operation in your local language. On-screen prompts and step-by-step instructions guide the user through instrument setup, operation and field calibration. The 9565 also features an ergonomic, overmolded case design with probe holder and a keypad lockout to prevent tampering during unattended use. The 9565 model includes the Straight Air Velocity Probe 964 and is designed to work with a wide range of plug-in probes.

Features and Benefits

• Straight Air Velocity Probe 964 measure air velocity, temperature and relative humidity
• Includes differential pressure sensor
• Best-in-class air velocity accuracy
• Optional “smart” plug-in probes, including VOC, CO₂, and rotating vane probes
• Accommodates up to two K-alloy thermocouples
• Large graphic display
  • Displays up to five measurements simultaneously
  • On-screen messages and instructions
  • Program for local language
• Intuitive menu structure allows for ease of use and setup
• Multiple data logging formats
• Bluetooth communications for transferring data or remote polling
• Includes TrakPro™ and LogDat2™ downloading software with USB cable

Applications

• HVAC testing and balancing
• Clean room testing
• Biological safety cabinet and laboratory fume hood testing
• HVAC commissioning and troubleshooting
• IAQ investigations
• Thermal comfort studies
• Ventilation evaluations
• Process air flow testing

Datasheet
