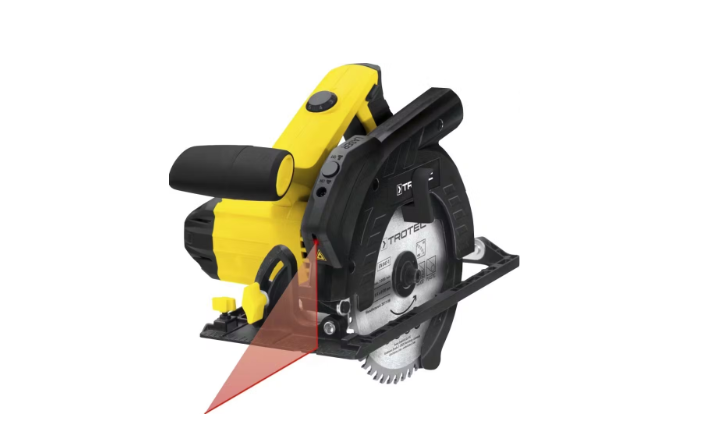

Trotec PCSS 10‑1400 ເລື່ອຍວົງກົມແບບເຄື່ອນທີ່ (2.000 - 4.800 min-1)
Technical data:
Idle speed: 2.000 - 4.800 min-1
Max. idle speed [min-1]: 4800
Min. idle speed: 2000
Cutting depth range at 45 °: max. 44 mm
Cutting depth range at 0 °: max. 65 mm
Electrical values:
Mains connection: 230 V, 50 Hz
Power input [W]: 1400
Protection class: II
Electric connection:
Connection plug: CEE 7/17
Cable length [m]: 3
Sound values according to EN 62841:
Sound pressure level LpA [dB(A)]: 87
Sound power level LwA [dB(A)]: 98
Uncertainty (K) Kpa / Kwa [dB]: 3
Vibration information according to EN 62841:
Vibration emission value (ah) Sawing wood [m/s²]: 1.2
Uncertainty (K) Sawing wood [m/s²]: 1.5
Saw blade data:
Idle speed saw blade [min-1]: 7000
Saw blade diameter [mm]: 190
Bore diameter [mm]: 20
Blade thickness [mm]: 1.35
Teeth thickness [mm]: 2.4
Dimensions:
Length (packaging excluded) [mm]: 245
Width (packaging excluded) [mm]: 315
Height (packaging excluded) [mm]: 260
Length Base plate [mm]: 150
Width Base plate [mm]: 300
Weight:
(packaging excluded) [kg]: 4
