Insulation: double
Diode test: Test current of 0.3 mA; test voltage < 3.3 V DC typically
Continuity test: An acoustic signal is emitted if the resistance amount to less than 50 Ω. Test current: < 0.5 mA
LC display: 3 3/4 digits; 4000 count LCD; with background illumination
Exceedance of the measuring range(outside limits): OL will be displayed.
Polarity: Automatic (no indication for positive);minus (-) sign for negative
Measuring speed: 2 x per second; nominal
Bluetooth frequency range: 2.4 GHz
Bluetooth max. transmission power: 0 dBm
Battery indication: The battery icon will be displayedwhen the battery voltage drops below the operating voltage threshold.
Battery: 2 x 1.5 V; type AAA
Fuses: µA/mA range: 500 mA / 600 V; 10 A range: 10 A / 600 V (measurement up to 10 A for 30 seconds possible. Afterwards a break of 15 minutes must be observed.)
Operating temperature: 5°C to 40°C (41°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Relative humidity for operation: < 80 % to 31 °C (87 °F); linearlydecreasing to 50 % at 40 °C (104 °F)
Relative humidity for storage: < 80 %
Operating height above sea level : Max. 2000 m (7000 ft)
Type of protection: IP40
Weight: approx. 140 g
Dimensions (length x width x height): 121 x 67 x 45 mm
Automatic switch-off : after approx. 15 minutes of non-use
Safety This measuring device is designed for indoor use and complies with overvoltage category CAT III (600 V).
Measuring ranges
DC voltage (V DC): 400 mV~600 V
AC voltage (V AC. 50 / 60 Hz): 4V~600 V
Direct current (A DC): 400 µA~10 A
Alternating current (A AC): 400 µA~10 A
Capacitance (nF): 40 nF~4000 μF
Resistance (Ω): 400 Ω~40 MΩ
Frequency / duty cycle: 9.99 Hz~9999 Hz
Duty cycle %: 1-99 %
Pulse width: 100 μs to 100 ms; frequency: 5 Hz to 100 kHz
Scope of delivery

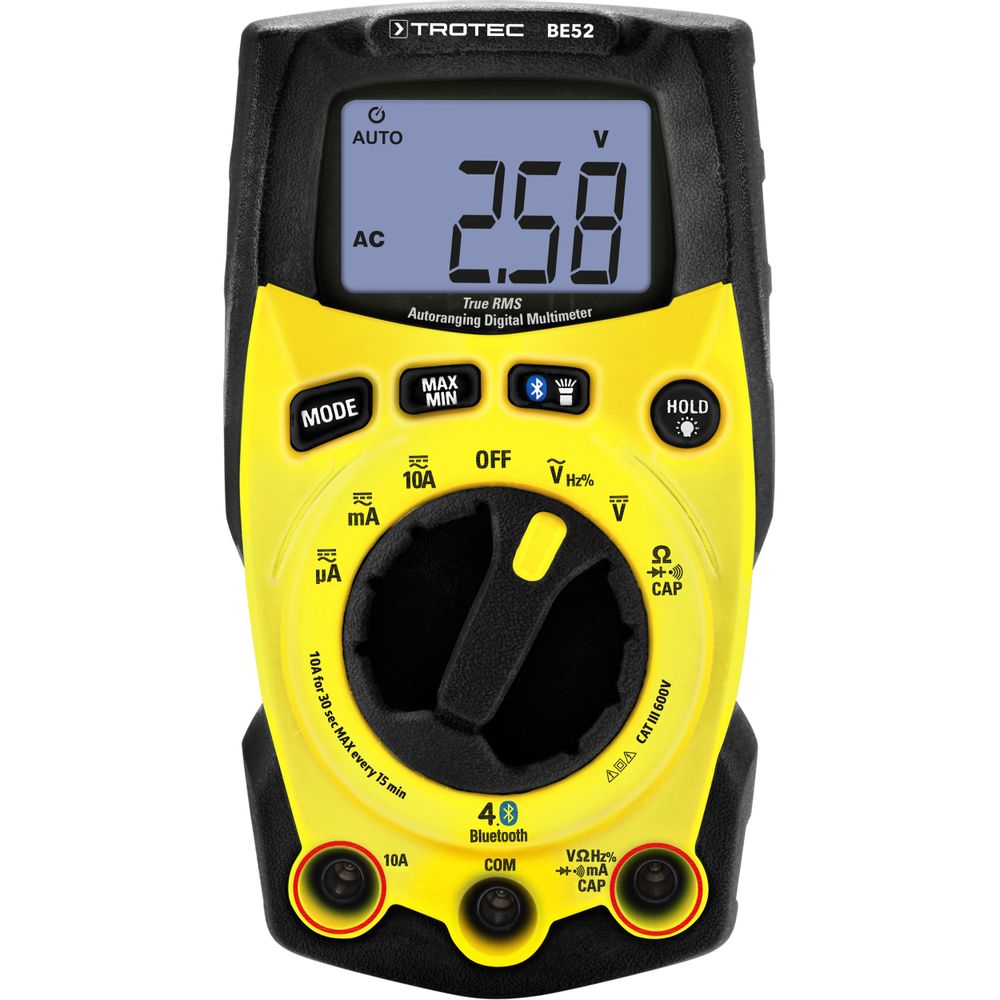

• 1 x device BE52
• 2 x Measuring tip
• 2 x 1.5 V battery AAA
• 1 x Quick guide
