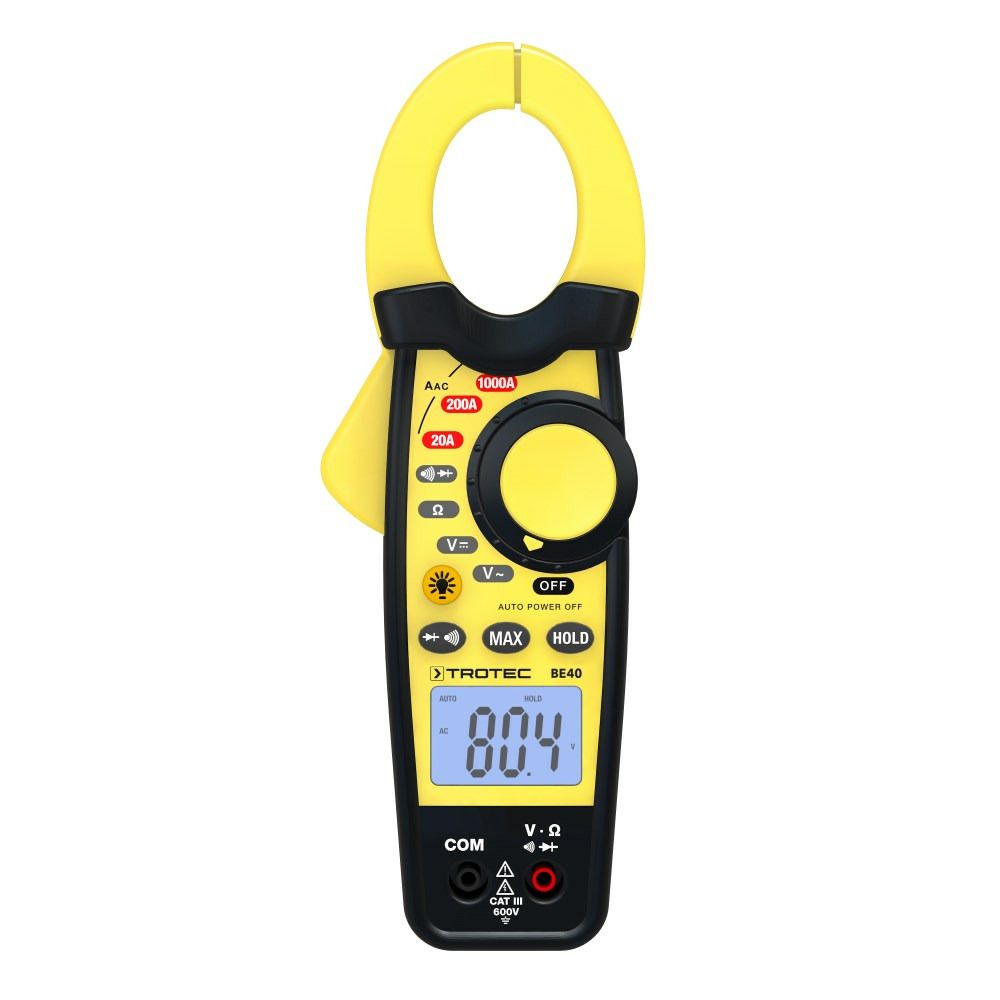

Trotec BE40 clamp ປະຈຸບັນ (100 A / 600 V / 20 MΩ; CAT III 600 V)
Size of the clamp opening: approx. 30 mm
Diode test: test current of 0.3 mA; open-circuit voltage: 1.5 V DC
Continuity test: threshold < 120 Ω; test current < 1 mA
Measuring range exceeded: OL is displayed
Measuring rate: 2 per second
Input impedance: 7.8 MΩ (V DC and V AC)
Frequency range alternating current: 50/60 Hz (A AC)
Frequency range AC voltage 50/60 Hz (V AC)
Operating temperature: -10 °C to 50 °C (-14 °F to 122 °F)
Storage temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Relative humidity: up to 85 %
Overvoltage protection: category lll. 600 V
Battery: 2 x 1.5 V. type AAA
Automatic switch-off: after approx. 15 minutes
Dimensions (length x width x height): 229 x 48 x 80 mm
Weight approx.: 303 g
Measuring ranges
Alternating current: 20~1000A
DC voltage: 200mV~600V
AC voltage: 200mV~600V
Resistance: 200 Ω~20 MΩ
Scope of delivery
• 1 x Device
• 1 x Red measuring cable
• 1 x Black measuring cable
• 2 x 1.5 V battery AAA
• 1 x Bag/holster
• 1 x Manual
