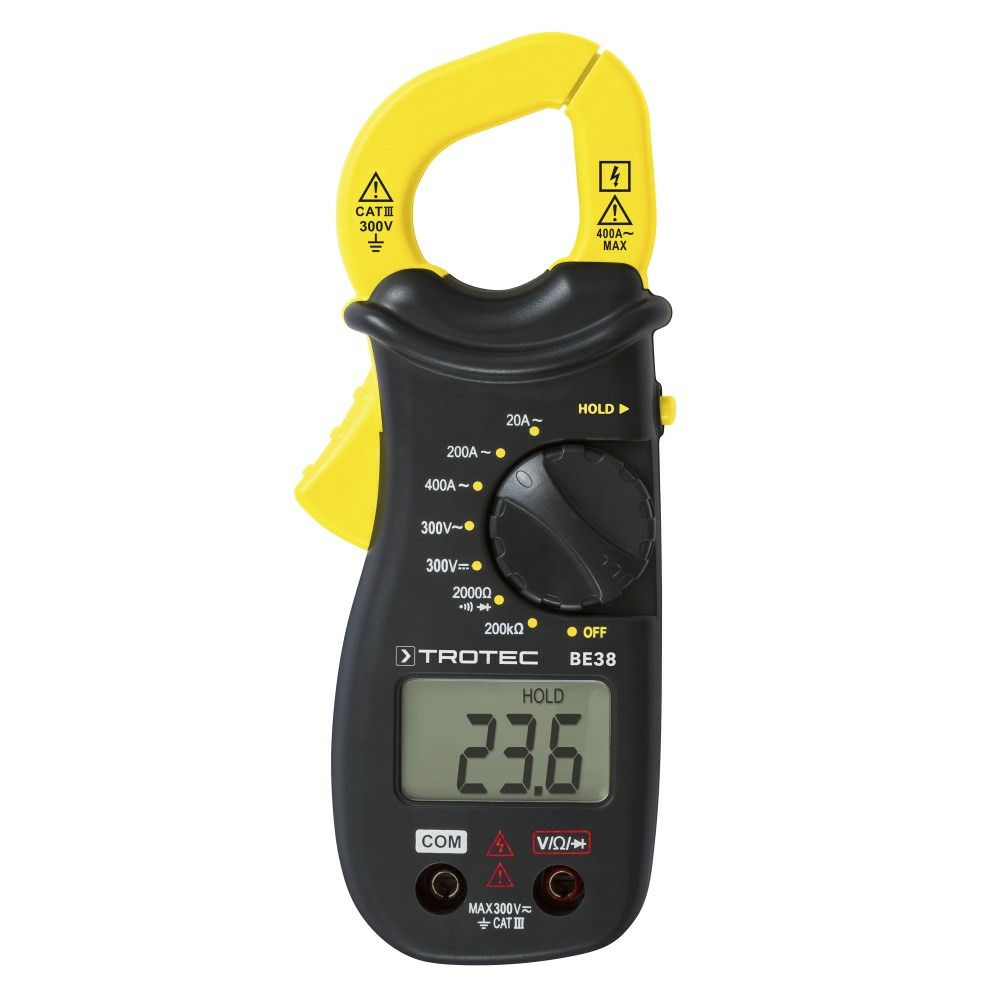

Trotec BE38 clamp ປະຈຸບັນ (400 A / 300 V / 200 kΩ; CAT III 300 V)
Weight: 155 g (incl. batteries)
Dimensions (length x width x height): 148 x 27 x 60 mm
Max. diameter of conductor: approx. 25 mm
Measuring rate: 3 per second
Input resistance (V AC and V DC:) 9 MΩ
Frequency range alternating current: 50/60 Hz (AAC)
Frequency range AC voltage: 40 - 400 Hz (VAC)
Ambient conditions: 0 °C to 40 °C with up to 75 % RH
Storage conditions: -20 °C to 60 °C with up to 85 % RH
Battery: 3x 3 V CR2032 button cell batteries
Overvoltage protection: Category lll 300 V
Type of protection: IP20
Measuring range Resolution Accuracy
AC voltage
300 V 1V ± (1.2 % + 3 digits)
DC voltage
300 V 1V ± (1.2 % + 3 digits)
Alternating current
20 A 10 mA ± (3.0 % + 5 digits)
200 A 100 mA ± (2.5 % + 5 digits)
400 A 1 A ± (2.5 % + 5 digits)
Resistance
2000 Ω 1 Ω ± (1.2 % + 2 digits)
200 kΩ 100 Ω ± (1.5 % + 2 digits)
Scope of delivery
• 1 x clamp meter BE38
• 2 x safety measuring line with test probe
• 3 x button cells 3 V CR2032
• 1 x manual
