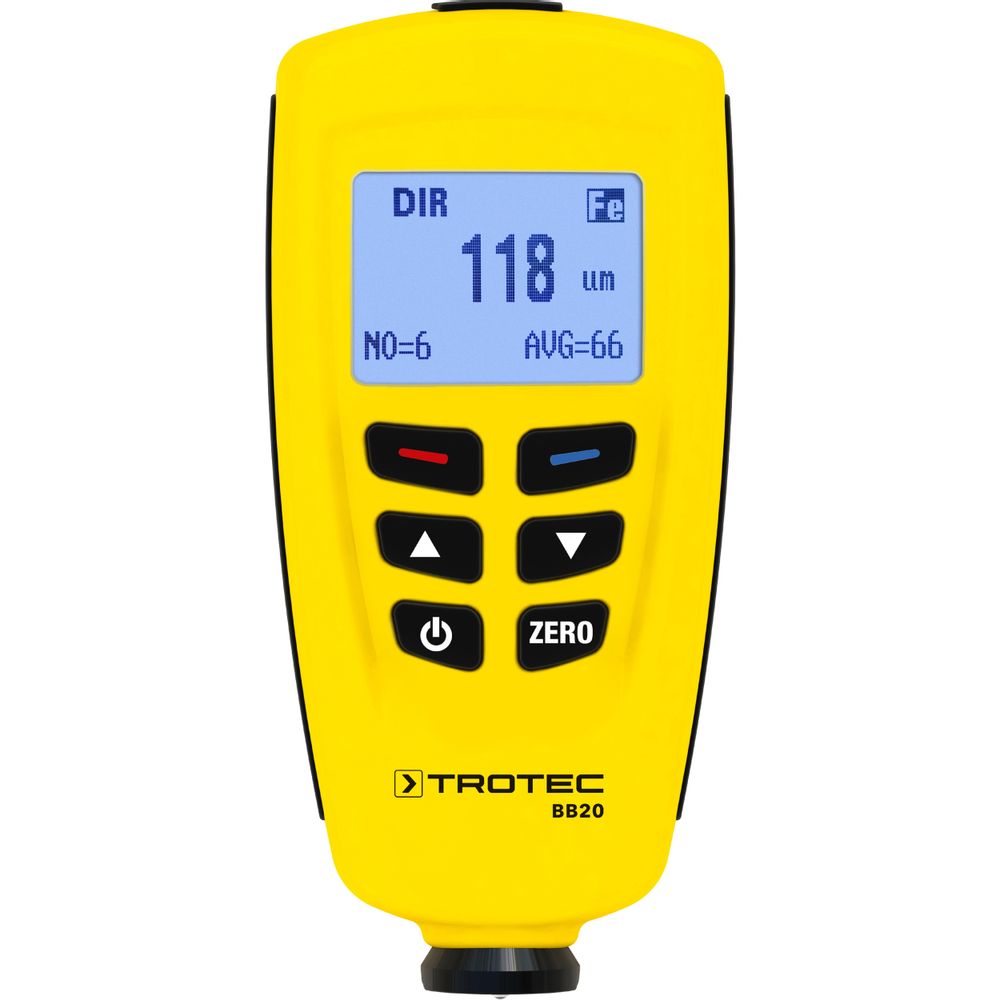

Trotec BB20 ເຄື່ອງວັດແທກຄວາມຫນາຂອງເຄືອບ (0 - 1250 µm; ± 0.1 µm)
Layer thickness measurement:
Functional principle | Layer thickness: Magnetic induction, Turbulent flow
Material | Layer thickness: Ferromagnetic ground, Non-ferrous metal ground
Min. measuring range [µm]: 0
Max. measuring range [µm]: 1250
Accuracy: ±0.1 µm
Tolerance | Non-ferrous metal ground Guaranteed tolerance with ferromagnetic ground in the measuring range from 0 to 850 µm: (±3 % + 1.5) µm of measured value
Tolerance | Non-ferrous metal ground Guaranteed tolerance with non-ferrous metal ground in the measuring range from 850 to 1,250 µm: ±5 % of measured value
Tolerance | Ferromagnetic ground In the measuring range from 0 to 850 µm: (±3 % + 1) µm of measured value
Tolerance | Ferromagnetic ground In the measuring range from 850 to 1,250 µm: ±5 % of measured value
Minimum measuring surface with non-ferrous metal ground: Ø 5 mm
Minimum bending radius with non-ferrous metal ground: 3 mm
Critical primary layer thickness of non-ferrous metal ground: 0.3 µm
Minimum measuring surface with ferromagnetic ground: Ø 7 mm
Minimum bending radius of the measuring surface with ferromagnetic ground: 1.5 mm
Critical primary layer thickness of ferromagnetic ground: 0.5 µm
Memory organisation:
Internal flash memory: Up to 400 measured values
Recall of previous measurements: ✓
Display:
LCD: ✓
Monochrome: ✓
Device control:
Push buttons: ✓
Ambient conditions:
Operation - min. temperature [°C]: 0
Operation - max. temperature [°C]: 40
Operation – min. relative humidity [% r.F.]: 20
Operation - max. relative humidity [% r.F.]: 90
Dimensions:
Length (packaging excluded) [mm]: 110
Width (packaging excluded) [mm]: 24
Height (packaging excluded) [mm]: 54
Weight:
(packaging excluded) [kg]: 0.114
