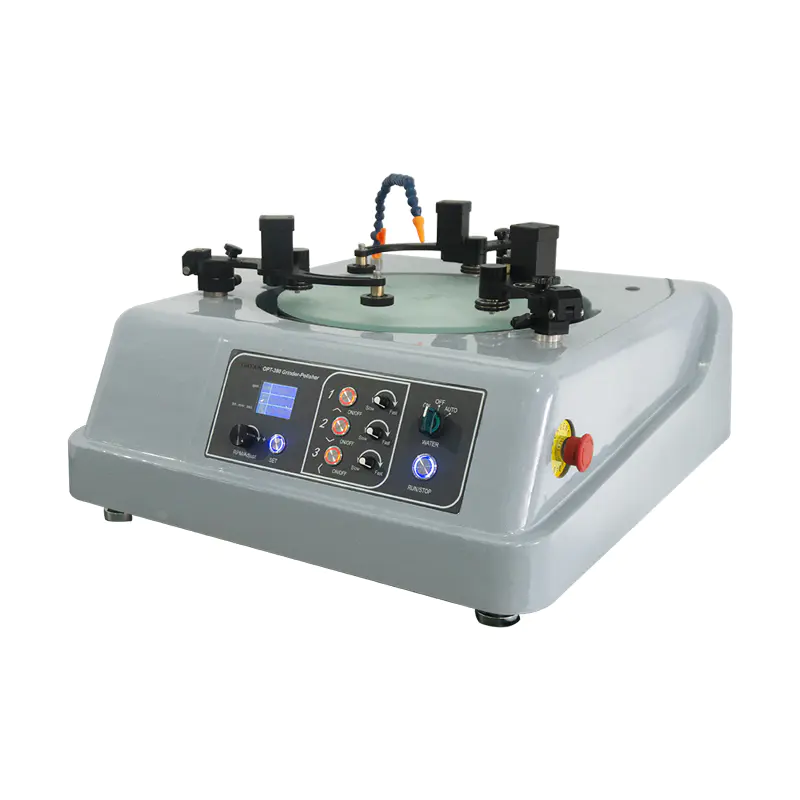

Trojan OPT-380 ເຄື່ອງບົດ ແລະ ເຄື່ອງຂັດອັດຕະໂນມັດແບບແມ່ນຍໍາ

Working Wheel

Speed: 10–200 rpm

Diameter: Φ380 mm

Working Station: Three station

Grinding Capacity

Specimen Size: Diameter < Φ142 mm

Planeness: Less than 0.002 mm per 20 × 20 mm

Electrical

Voltage/Frequency: 220 V / 50 Hz

Rated Power: 800 W

Standby Power: 15 W

Timer: 0–999 h 59 m 59 s

Water Supply

Max. pressure: 0.6 MPa

Dia. on inlet pipe: Φ8 mm

Dia. on outlet pipe: Φ32 mm

Features

1. The grinding disc can be convenient to replace as the swing arm can be quickly disassembled and assembled;

2. Even longer service life as the motor adopts angular contact bearing instead of ball bearing;

3. Can accurately control the working time (between 0-999H) with timing function;

4. Can running long-term in low-speed with a cooling system;

5. Convenient to operate on the 2.4-inch simple LCD screen.
