Optical System: Infinity-corrected Optical System
Optical Magnification: 50× to 500× (Optional 500× / 1000×)
Digital Magnification: 150×–1500× (21.5" Display)
Industrial Camera: 12 Megapixel 1/1.8-inch Sony Color Industrial Chip (Optional 6 Megapixel and 20 Megapixel)(optional)
Observation Tube:
Erect Image, Infinity Optical System Hinge-Type Trinocular Observation Tube, Interpupillary Distance Adjustment: 50 mm–76 mm, Two-Position Light Split Ratio: Binocular: Trinocular = 100:0(optional)
Inverted Image, Infinity Optical System Hinge-Type Trinocular Observation Tube, Interpupillary Distance Adjustment: 50 mm–76 mm, Two-Position Light Split Ratio: Binocular: Trinocular = 100:0
Eyepiece:
High Eyepoint Wide-Field Eyepiece SWH10X-H / 23 mm, with Adjustable Diopter
High Eyepoint Wide-Field Eyepiece SWH10X-H / 25 mm, with Adjustable Diopter(optional)
Objective Lens:
Infinity-corrected fluorite semi-apochromatic bright/dark field objective, 45 mm visible light metallographic objective, 5X NA0.15 WD20.0 mm
Infinity-corrected fluorite semi-apochromatic bright/dark field objective, 45 mm visible light metallographic objective, 10X NA0.30 WD11.0 mm
Infinity-corrected fluorite semi-apochromatic bright/dark field objective, 45 mm visible light metallographic objective, 20X NA0.45 WD3.0 mm
Infinity-corrected fluorite semi-apochromatic bright/dark field objective, 45 mm visible light metallographic objective, 50X NA0.80 WD1.0 mm
Infinity-corrected fluorite semi-apochromatic bright/dark field objective, 45 mm visible light metallographic objective, 100X NA0.90 WD1.0 mm(optional)
Nosepiece:
5-position bright/dark field objective changer with DIC slot
5-position motorized bright/dark field objective turret with DIC slot(optional)
Illumination System:
Reflective light source; low-hand position coarse and fine coaxial focusing mechanism; coarse focusing stroke 35 mm; fine focusing precision 0.001 mm; equipped with adjustable tension mechanism to prevent slipping and upper limit stop; built-in 100–240 V wide voltage system; digital dimming with light intensity setting and reset functions
Specimen Stage:
4-inch specimen stage; platform area 310 × 240 mm; travel range 100 × 100 mm; coaxial adjustment in X and Y directions
Condenser: Swing-out Achromatic Condenser (NA 0.9)
Episcopic Illuminator: Brightfield/Darkfield Reflected Light Illuminator, equipped with adjustable aperture diaphragm, field diaphragm, central optics, filter slot, and slots for polarizer/analyzer
Illuminator Housing: 10 W Adjustable LED Lamp Housing, suitable for both transmitted and reflected light, pre-centered
Camera Adapter: Photography and Imaging Accessories; 0.65X C-mount interface; adjustable focus (optional 0.5X / 1X)
Polarizing Component: Polarizer Insert Plate; 360° Rotatable Analyzer Insert Plate
Computer: Branded Computer and Monitor(optional)
Measurement Software: Measurement Software OMT-1.5D; software-controlled electric objective turret; image capture; video recording; measurement; real-time image stitching; depth-of-field fusion(optional)
Scale: High-Precision Micrometer Scale; Graduation Value: 0.01 mm(optional)

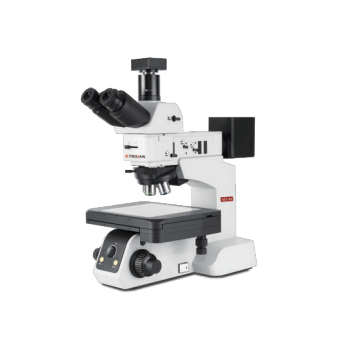

The MN 80 Series Metallographic Microscope makes metallographic examination easier, more convenient, and more efficient. With an ergonomic design, it ensures comfortable operation; specifically designed for metallographic analysis, it guarantees high resolution and accurate color reproduction, revealing every detail with precision. Trojan continues to provide innovative ideas, solutions, and technical support across various industries, including metallographic testing, semiconductor wafers, flat-panel displays, and electronics.
