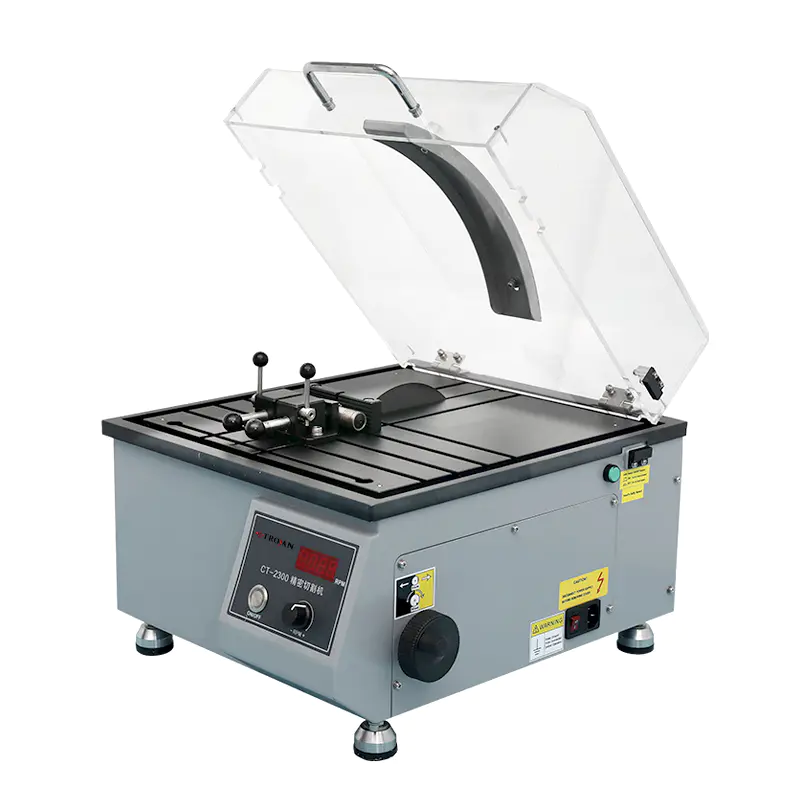

Trojan CT-2300 ເຄື່ອງຕັດດ້ວຍມື (Φ180mm; 0-3000rpm)

Wheel Diameter: Φ180 mm

Motor Power: 0.9 kW

Wheel Speed: 0–3000 rpm

Wheel Movement: Y-axis

Vising Table Size: 350 × 370 mm

Maximum Cutting Diameter: Φ30 mm

Maximum Square Cross-Section: 30 × 50 mm

Features

1、Wheel Diameter:Φ180mm;

2、Rated power: 0.9kW;

3、Maximum cutting diameter: Ф30mm;

4、Offers both dry and wet cutting modes;

5、T-slot clamping device for easy fixture installation;

6、Fully transparent high-strength top cover for easy observation of the cutting process;

7、The top cover can be set to "unlock" mode, allowing cutting of samples that exceed the platform's size limitations;

8、Speed adjustable, ranging from 200 to 3000 rpm;

9、The motor is equipped with a cooling fan and overload protection.

Datasheet
