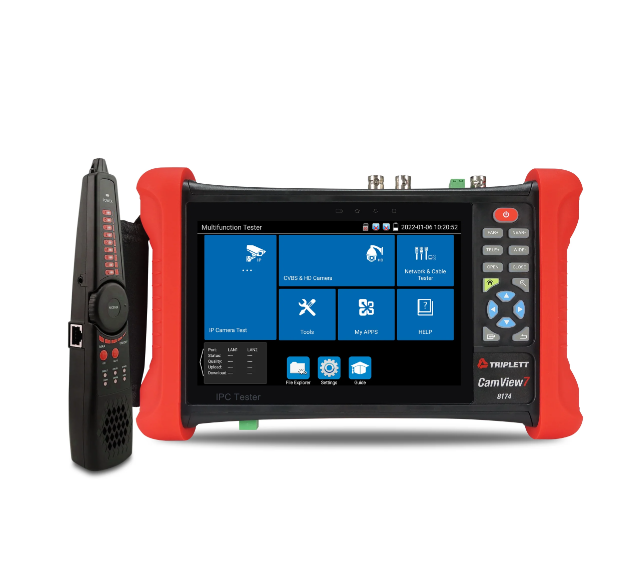

Triplett 8174 ຕົວທົດສອບກ້ອງວິດີໂອພ້ອມກັບຕົວວິເຄາະສະພັກເຕີມ 2.4G (12V DC/3A)
Display Size: 7 inch touch screen with retina display
Display Resolution: 1920 x 1200 resolution
CVBS
1 channel BNC input & 1 channel BNC looped output,
NTSC/PAL (Auto detect)
Analogue video level meter, peak video signal level, SYNC
signal level, Color bar
Chroma level measurement
PTZ control, RS485 control, Baudrate 600-115200bps
CVBS loop test: Send and receive color bar generator
signal, check BNC cable
IP camera test: IP Discovery / Quick ONVIF / IPC test /
IPC viewer / RTSP Player / Client APK / Auto HD - Auto Detect Type
Rapid Video: Auto Login to view the video and create test
report
IP & CVBS test: Test IP & CVBS video
simultaneously, utilizing dual test window feature
Coaxial HD test (auto HD automatically recognizes the
type of HD Signal) :
8MP AHD test, 3840 x 2160P 15 fps
8MP TVI test, 3840 x 2160P 15 fps
8MP CVI test, 3840 x 2160P 12.5/15fps
HD-SDI/Ex-SDI Camera Testing
HDMI input: 1 channel HDMI input, supports up to 4K
Zoom Image: 4x zoom to enlarge on screen image, screen
snapshot, screen record, save, view, record & play back video
Color bar generator: Output one channel PAL/NTSC color
bar video signal for testing monitor or video cable, 24V DC 2A Power Out
HDMI output: 1 channel HDMI output, supports up to 1080P
for testing HDMI input of monitor
Power output:
12V DC/3A Power Output
48V PoE power output, max power 24W
5V/2A USB power output
Cable tracer: Trace BNC, network and telephone cables
UTP cable test: Test UTP cable connection status and
display on the screen. Read the number on the screen
RJ45 cable TDR test: Test cable pair status, length,
attenuation, reflectivity, impedance, skew etc. (max range 180m)
Network Test: Trace route, Link monitor, DHCP server,
port flashing, ping test
Wi-Fi: Built in WiFi, 150M speeds
Audio Test: 1 channel audio signal input, to test if
sound is normal, 1 channel audio signal for headphones
Data Monitor: Captures and analyses the command data from
controlling device; can also send hexadecimal data
PoE test: Measures POE switch or PSE power supply voltage
and cable connection status
External power supply: DC 12V 2A
Battery Built-in
7.6V Lithium polymer battery, 7800mAh
Rechargeable battery life: 3.5-4 hour charge, achieves up
to 16 hours operation
Operation setting: OSD menu, select your desired
language: English, Chinese, Korean,Russian, Italian, French, Polish, Spanish,
Japanese, etc.
Auto power off: 1-30 mins
TesterPlay: Screen projection: tester, mobile phone and
PC display at the same time (for android version mobile phone)
Wi-Fi Analyzer: Detect the surrounding wi-fi signal and
signal strength, supports 2.4G frequency band
Drop-down Menu: Select PoE power switch, IP setting,
CVBS, LAN info, HDMI IN functions etc in any interface
Dimensions/Weight: 9.4 x 6.1 x 1.8" / 1.4lbs (240 x 154 x 46
/ 620g)
