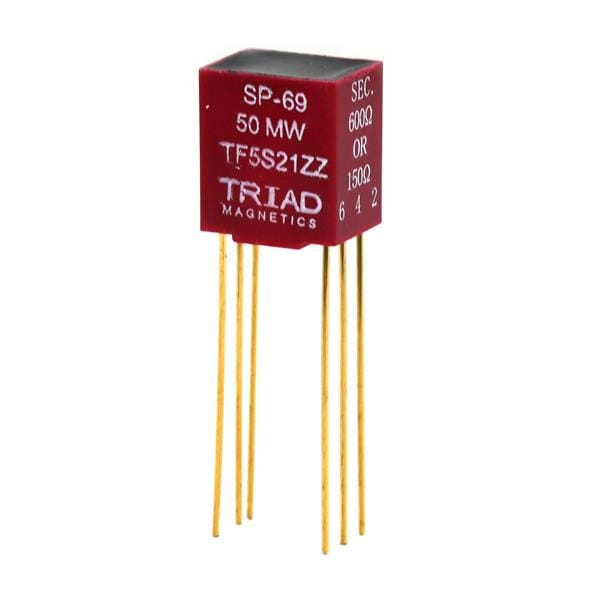

Triad Magnetics SP-69 ປິນ ເທີມິນານ ແອດີໂອ XFMR 600:600ct* 3.0mADC 50mW ເນັບຄັດເຊີລເດັດ PCB MOUNT/SP-69

Width: 10.41 mm

Height: 11.811 mm

Length: 7.874 mm

Application: High Reliability

Unit Weight: 11.340 g

Power Rating: 50 mW (1/20 W)

Current Rating: 3 mA

Frequency Range: 300 Hz to 100 kHz

Isolation Voltage: 1 kV

Primary Impedance: 600 Ohms

Termination Style: Radial

Number of Channels: Single

Primary Resistance: 72 Ohms

Secondary Impedance: 600 Ohms, 150 Ohms

Secondary Resistance: 40 / 45 Ohms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
