Capacity: Up to 24 bundles/minute
Strap Width: 5 mm, 6 mm, 8 mm, or 9 mm
Tension Range: 1 - 20 kg
Bundle Weight: max 30 kg
Conveyor Height: 780 - 1080 mm
Conveyor Speed: 30 - 70 m/minute
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Powered alignment device
Dual dispenser with auto splicer
Air conditioner for control box
Belt driven conveyor for the last bundle
Energy saving transit with auto sleep mode
Bus interface for bundle size data transfer from upstream equipment
Gravity wheel conveyor
VIDEO
Watch as reference: TP-CIL TransCorrLiner Inline Strapping and Squaring System
Datasheet

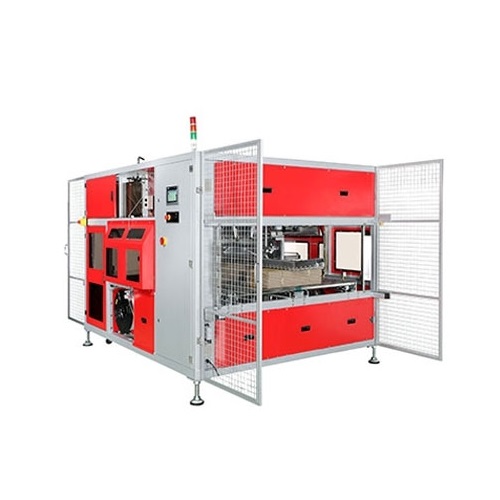

TransCorrLiner TP-CIL is a high speed corrugated inline squaring and strapping system which meets the speed requirement of the fastest Flexo Folder Gluer and Casemaker. TP-CIL uses the latest brushless DC motor direct drive technology in sealing head, needle, squaring devices, and off-center strapping to provide the highest level of reliability and durability. In addition, the intelligent self-positioned pusher detects bundle length automatically to streamline production process and increase strapping speed.
Features
Compact & robust strapping head
Intelligent pusher optimizes speed (patents registered)
Automatic bundle size setup system
Independent controlled conveyor
Strapping in the flute direction
Siemens PLC and HMI
Off-center strapping
Hot standby mode (twin head model only)
Drape-strap feeding system
Dual channel e-stop
