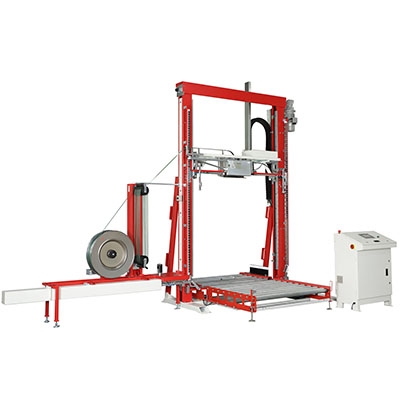

Transpak TP-733VTS Zelos Pallet Strapping Machine (PP & PET)

Capacity: Up to 63 pallets/hour (2 parallel straps)

Strap Type: PP and PET strapping

Strap Width: 9 mm, 12 mm, 15.5 mm, or 19 mm

Tension Range

1,100 - 3,200 N (standard)

200 - 1,200 N (optional)

Minimum Package Size: 350 mm (W) x 300 mm (H)

Strap Core Size: 406 mm

Electrical Requirements: 220V, 380V, 400V, 415V  50/60Hz 3PH

Options

Lower tension range (200-1200 N)

Light tower with low strap sensor

Air conditioner for electric control cabinet

Adding underfeed channel (patent registered)

Automatic self-adjusting strapping head height for next package

End of strap signal

Uplifted support

Video

Watch as reference: TP-733VTS Zelos Top-sealing Pallet Strapping Machine - TRANSPAK

Datasheet

TP-733VTS is ideal for general palletized products. It is also suitable for those with low package height. The top sealing design provides the highest strapping efficiency onto the packages. The easy operating SIEMENS touch panel makes job operation and monitoring simple. With quick connection to master control system, TP-733VTS can perfectly fit every end-of-line packaging operation.

Features

ARES TP-733-SH strapping head

Siemens PLC and HMI

Floating head

Strap can be fed at any height

Friction weld sealing technology

Free access to strap guides

All electric driven design

Strap end ejector

Adjustable sealing and cooling time

Adjustable speed for strapping head movement

Excellent package top detection

Dual channel e-stop
