Capacity: Up to 60 pallets/hour (3 parallel straps)
Strap Type: PP or PET strapping
Strap Width: 12 mm, 15.5 mm, or 19 mm
Tension Range
1100 - 3200 N (standard)
200 - 1200 N (optional)
Minimum Strapping Height
(a) With conveyor: 160 mm above conveyor surface
(b) Without conveyor: 240 mm above floor
Maximum Package Height
Standard: 2,200 mm
Option: 2,700 mm
Strap Core Size: 406 mm/200 mm/230 mm/280 mm
Pneumatic Source & Air Consumption
6 bar
7.1 liter/cycle
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Floating head
Free standing operation desk (3M)
Light tower with low strap sensor
Dual channel E-Stop
Lower tension range (200 - 1200 N)
HMI and PLC mounted on the opposite side
Strap program selecting by remote control (4-bit binary input)
No safety rack
Uplifted support
Maximum package height up to 2700 mm
Video
Watch as reference: TP-733H Castor III & TP-733VLM Pollux III Pallet Strapping Machines - TRANSPAK
Datasheet

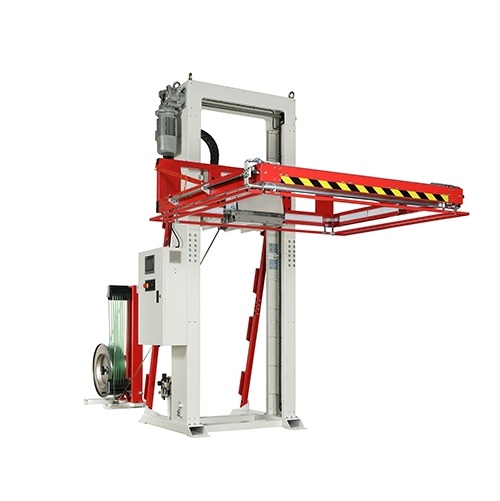

The enhanced TP-733H provides accurate strapping output on all natural-sized loads with consistent performance. It maximizes the productivity and minimizes the production cost for users. Designed for simple and quick connection to the master control system, TP-733H can easily fit in various end-of-line packaging sectors. It is your best choice for fully automatic operation in various applications, including palletized products, home appliance, bricks & blocks, etc.
Features
ARES TP-733-SH strapping head
Index strapping head
Strap guide arm
Safety rack
Friction weld sealing technology
Siemens PLC and HMI
Free access to strap guides
Swivel dispenser set
Adjustable sealing and cooling time
Strap end ejector
Preprogram setting
Easy to retrofit
