Transpak TP-702Y Mercury ຄວາມໄວສູງເຄື່ອງສາຍປະທັບຕາດ້ານຂ້າງ (5-12mm, 1-55kg)
Capacity: Up to 60 cycles/minute
Strap Width: 5mm, 6 mm, 9 mm, or 12 mm
Tension Range
1 - 32 kg (for 5 mm, 6 mm, and 9 mm)
1 - 55 kg (for 12 mm)
Weight: 294 kg
Electrical Requirements
110V, 220V, 230V, 240V 50/60Hz 1PH
220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Light tower with low strap sensor
Small package
End of cycle and strapping error signals
Without adjustable roller table (TP-702Y-XT)
Dual Press Bar
Video
Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK
Datasheet

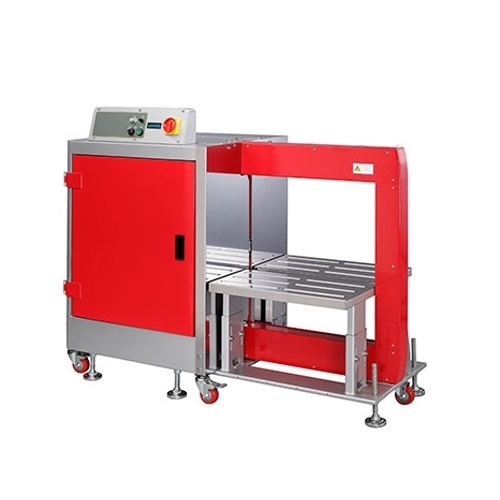

Mercury TP-702Y is a high-speed side-seal strapping machine built with Transpak Mercury strapping head and brushless DC motor technology. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc.
Features
Robust and compact strapping head
High strapping speed up to 60 straps per minute
Control panel with LCD display
Free access to strap guides (patents registered)
Downward tension force
Inner strap dispenser design
Adjustable table height from 445 mm to 645 mm
