Capacity
Up to 47 cycles/minute (TP-702PS-59)
Up to 44 cycles/minute (TP-702PS-12)
Strap Width
5 mm, 6 mm, or 9 mm (TP-702PS-59)
12 mm (TP-702PS-12)
Tension Range
1 to 32 kg (TP-702PS-59)
1 to 55 kg (TP-702PS-12)
(Higher tension is on request)
Weight
224 kg (TP-702PS-59)
226 kg (TP-702PS-12)
Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH
Options
Photo-eye switch
Rear foot bar switch
Foot pedal switch
Lower adjustable table height (770-820 mm)
Safety guards
Stainless steel frame SUS 304
VIDEO
Watch as refernce: Transpak TP-702S Mercury (stainless steel frame SUS304)
Datasheet

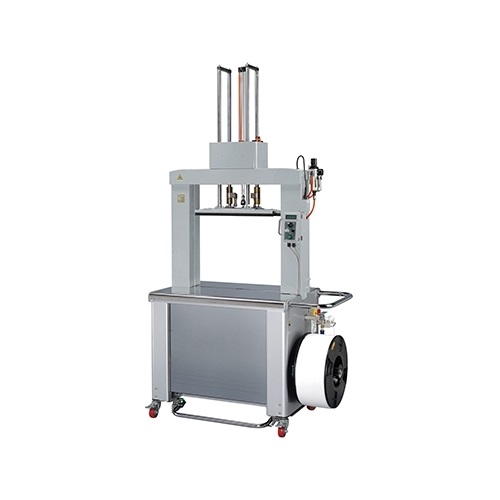

TP-702PS is a high-speed automatic strapping machine with stainless steel frame (SUS 304). It equips with dual pneumatic press for strapping compressible materials. It is ideal for moist working environment, such as meat, seafood, poultry, and agricultural processing plants.
Features
Robust & compact mechanical strapping head
Free access to strap guides (patents registered)
Dual pneumatic press
Waist-high auto strap feeding
Waist-high quick coil change (patents registered)
Turnable operating control panel
Auto strap ejector
Dispenser release switch
Sensor controlled heater
Low voltage
Strap end ejector
Front foot bar switch
Adjustable table height between 820 mm and 920 mm
