Capacity: Up to 25 bundles/minute
Bundle Size W x L x H
Max: 500 x 500 x 390 mm
Min: 210 x 210 x 10 mm
Bundle Weight: max 25 kg
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Pneumatic Source: 6 bar
Air Consumption: 5.5 liter/cycle
Weight: 1,045 Kg
Options
Energy saving transit with auto sleep mode
Light tower with low strap sensor (triple lamp)
Additional soft press for convex bundle
Automatic side squaring
Low volume bundle bypass

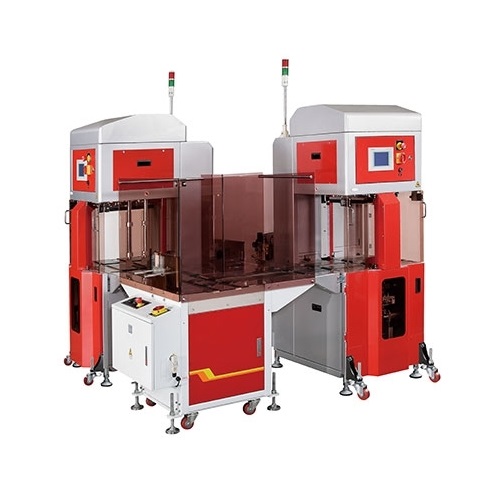

Movable casters (picture shown with this option)
Lever switch for bundle with wrapping
Safety guards (picture shown with this option)
Datasheet
TP-702NAD is a fully automatic strapping system with angle diverter for cross strapping requirement - meeting different plant layout requirement.
Features
Robust & compact mechanical strapping head
Automatic tension control for various bundle dimensions (patents registered)
Dual pneumatic press
Up and down stream interlock with complete plug connection
Fully automatic operation with variable conveyor speed
Siemens PLC and touch panel
Free access to strap guides (patents registered)
Easy access to strapping head (patents registered)
Strap end ejector
Auto strap ejector
Adjustable table height between 800 mm and 900 mm
