Arch Size (W x H): 1650 x 450 mm
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Capacity
Up to 32 bundles/minute (single strap)
Up to 26 bundles/minute (double straps)
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Dual dispensers with auto coil change
Light tower with low strap sensor
Energy saving transit with auto sleep mode
Floor rails
Press roller on accumulating conveyor
Bus interface for bundle size data transfer from upstream equipment
Foot pedal switch
Uplifted support
Video
Watch as reference: TP 702CQ3-T introduction - TRANSPAK
Datasheet

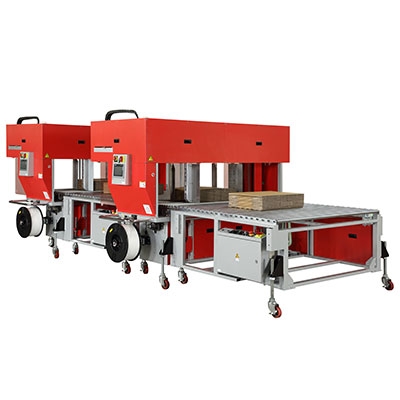

TP-702CQ3-T is an all-electric TANDEMsystem of high speed corrugated strapper with integrated 3-side squaring design. Motorized squaring and backstop devices provide precise bundle handling and positioning for forming perfect bundles. The TANDEM design with the built-in program enables the system to process up to 32 bundles per minutes - one of the fastest systems designed specially for high capacity Flexo Folder Gluer and Casemaker in the industry.
Features
Compact & robust strapping head
Integrated 3-side squaring device
Free access to strap guides (patents registered)
Siemens PLC and HMI
Automatic bundle size setup system
All electric driven design
Motorized full-width press
Good for small bundle
Multiple operation modes
High speed
Hinged roller table
