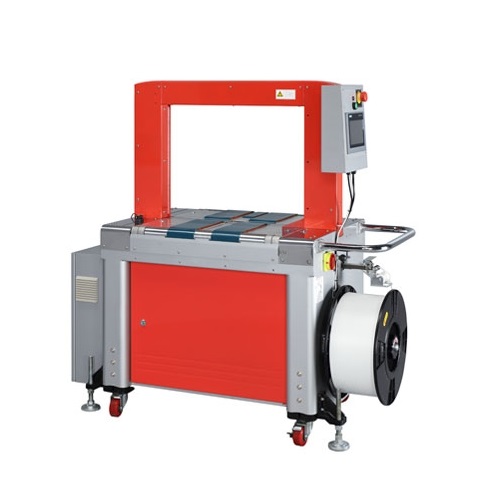

Transpak TP-702BH Mercury Transit ເຄື່ອງມັດສາຍອັດຕະໂນມັດຢ່າງເຕັມສ່ວນ (Belt-driven, 5-12mm, 1-55kg)

Strap Width: 5 mm, 6 mm, 9 mm or 12 mm

Tension Range

1-32 kg (for 5 mm, 6 mm, 9 mm)

1-55 kg (for 12 mm)

Capacity: Up to 36 packages/minute (Cycle speed up to 65 cycles/minute)

Weight: 228 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Dual channel E-Stop

Light tower with low strap sensor

Energy saving transit with auto sleep mode

Strapping in the center of the bundle & strapping controlled with 2 photo eyes

Extension belt-driven table of 200 mm on upstream and downstream sides

Lower adjustable table height (750 mm – 900 mm)

Automatic tension control by package height detection (3 stage tension)

Automatically determining the number of straps by package length

Signal exchange via 16 pin connector

Low package bypass

VIDEO

Watch as reference: TP-702B Fully Automatic Strapping Machines - TRANSPAK

Datasheet

Mercury Transit TP-702BH is a fully automatic strapping machine with belt-driven table and Siemens PLC & HMI for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702BH is the fastest and most reliable strapping machine for general applications on the market today.

Features

Robust & compact mechanical strapping head

Belt-driven table

Equipped with Siemens PLC and HMI as standard

Waist-high auto strap feeding

Free access to strap guides (patents registered)

Electronic tension control

Auto strap ejector

Hinged top plates

Diverse strapping patterns

Variable conveyor speed between 10 and 60 meters/minute

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Good to strap small package with minimum size 120 mm in width and 10 mm in height

Adjustable table height between 800 mm and 900 mm
