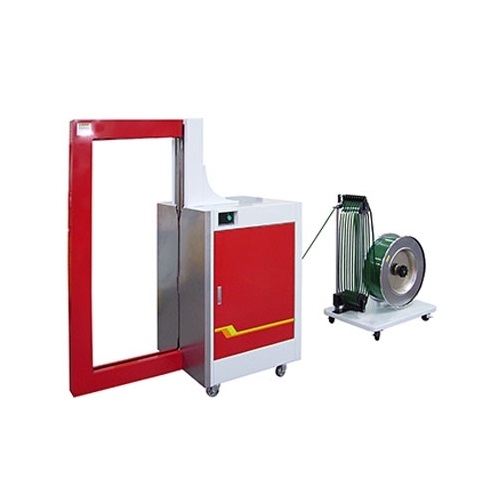

Transpak TP-601YPT ອັດຕະໂນມັດ Side-Seal Strapping Machine (PET & PP strapping, 9-15.5mm, 20-150kg)

Capacity: Up to 11 cycles/minute (60Hz)

Strap Width: 9 mm, 12 mm, or 15.5 mm

Tension Range: 20 - 150 kg

Strap Core Size: 406 mm (200/280 mm Optional)

Weight: 355 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

* Requires safety devices to meet CE regulations

Options

Up and down stream interlock with photo-eye control

Emergency stop switch

Foot pedal switch

Strap dispenser 90-degree turn

PU casters (2 free and 2 with brake)

Uplifed support

With adjustable free roller table (TP-601YPT-T)

Video

Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK

Datasheet

TP-601YPT is an automatic side-seal strapping machine for PP and PET strapping (9 mm - 15.5 mm). With the extra-large arch sizes available, TP-601YPT is ideal for application on large and/or heavy products, household appliances (like refrigerator, television, or washing machine), and various palletized products. It can be integrated with most production lines.

Features

Friction weld sealing technology

Siemens PLC

Electronic tension control. Tension up to 1500 N (150 kg).

Auto Strap Refeed

Auto Strap Ejector
