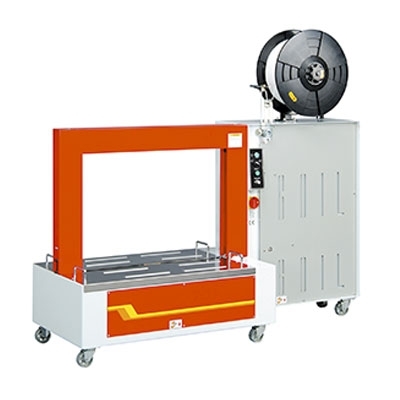

Transpak TP-601L Tauris ເຄື່ອງສາຍອັດຕະໂນມັດ (Low-table, 8/9/12mm, 7~45kg)

Capacity: Up to 29 cycles/minute

Strap Width: 8 mm, 9 mm, or 12 mm

Tension Range: 7 - 45 kg (*up to 70 kg on request)

Table Height: 410 mm

Weight: 235 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Emergency stop switch

PU casters  (5 free and 2 with brake)

VIDEO

Transpak Tauris TP-601D (TP-601L is Low-table model built based on Tauris TP-601D)

Datasheet

Tauris TP-601L is built based on Tauris TP-601D. It is designed to work with bulky and heavy packages. Table height is as low as 410 mm. Safe operation is assured as heavy packages can be strapped easily while keeping lifting effort at a minimum.

Features

Auto strap feeding

Electronic tension control

Auto strap ejector

Short feed sensor

Auto strap refeed

Strap end ejector
